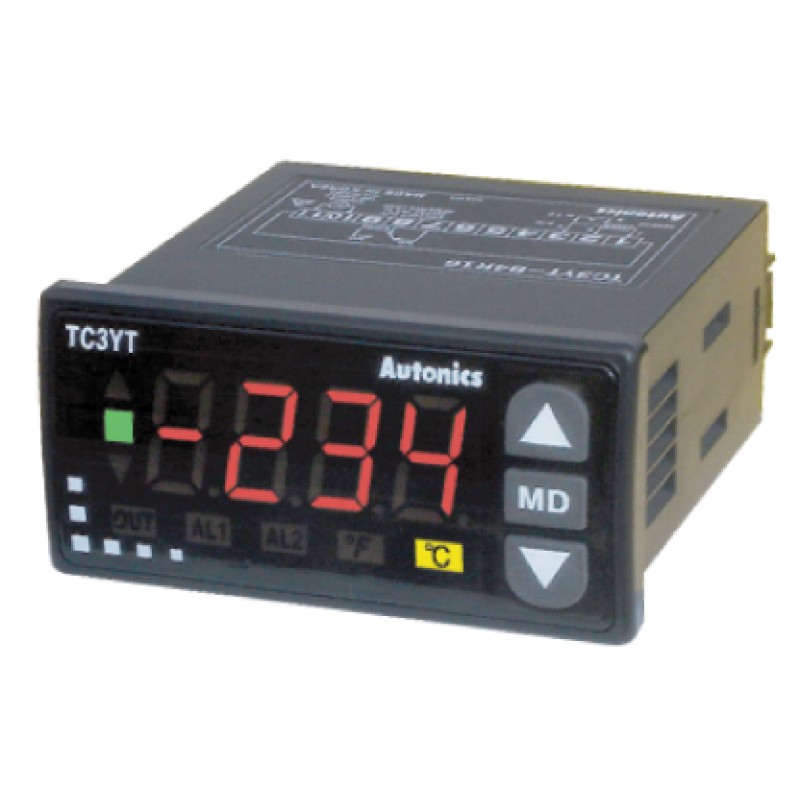

Temp Control, W72 X H36 mm, On-Off / Proportional mode, 3 digit display, Relay output 3A, J, K, RTD input, 100-240 VAC

Allowable Voltage Range	90 ~ 110% of rated voltage
Power Consumption	4 VA
Indication Method	7 Segment Red LED Display (Red) [Deviation signal (Green), unit display (Yellow)]
Display Method	[PV &plusminus0.5 % or &plusminus1 °C Max.] rdg &plusminus 1 digit
Sampling Period	500 MS
Control Method	ON/OFF and proportional control (common use)
Hysteresis	1 ~ 100 °C
Proportional Band	0 ~ 100%
Offset Correction	0 ~ 100%
Control Period	1 ~ 120 sec.
Memory Protection	Approx. 10 years (When using non-volatile semiconductor memory)
Insulation Resistance	Min. 100MΩ (at 500 VDC)
Dielectric Strength	2000 VAC 60 Hz for 1 minute (between all external terminal and case)
Noise Strength	±2 kV R phase and S-phase (pulse width 1 µs)
Mechanical Relay Life Cycle	Min. 10000000 times
Malfunction Relay Life Cycle	Min. 10000000 times (250 VAC 3 A resistive load)
Vibration	0.75mm amplitude at frequency of 10 to 55 Hz in each of X, Y, Z directions for 1 hours
Ambient Temperature	-10 ~ 50 °C (at non-freezing status)
Storage Temperature	-20 ~ 60 °C (at non-freezing status)
Ambient Humidity	35 ~ 85%RH
Protection	IP65
Dimensions	DIN W72 x H36mm
Power Supply	100 - 240 VAC
Control Output	Relay 250VAC 3A 1c
Input Type	RTD : Pt 100 Ω (DIN) T.C (Thermocouples) : K (CA). J (IC)
