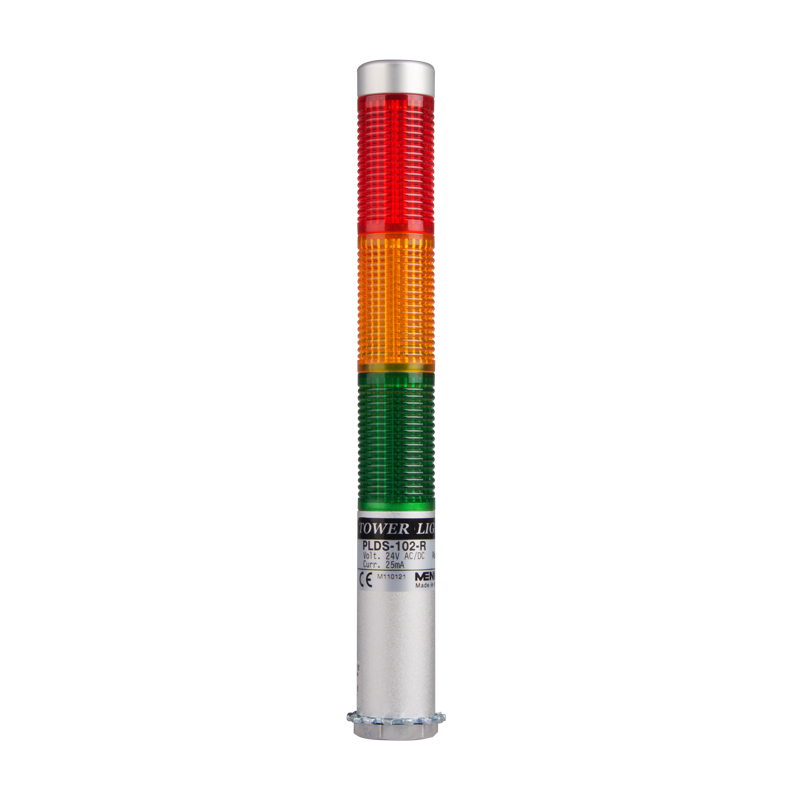

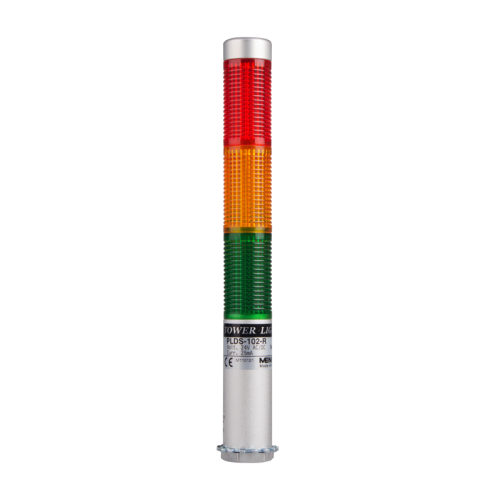

LED stack tower light, 25mm red/yellowgreen color 3 stack, Steady, Direct mounting 65mm long aulminum body, 25" prewired, 12V AC/DC
- Brand: MENICS
- Product Code: PLDS-301-RYG
- Availability: In Stock
$108.95
| Available Function | Steady/Steady/flash | |||
| Material | Body: Aluminum, Lid: ABS, Lens: PC, Fixing bolt: Aluminum, Lock nut: steel | |||
| Size | 25mm diameter | |||
| Maximum tier | 5 stacks | |||
| Power Supply | 12VAC/DC | 24VAC/DC | ||
| Current Consumption |
R | 42mA | 120mA | |
| Y | 40mA | 130mA | ||
| G | 75mA | 125mA | ||
| B | 40mA | 125mA | ||
| C | 40mA | 125mA | ||
| Flash rate | Approx. 80 +/- 5 flashes/min. | |||
| Certificate/Compliance | RoHS, CE | |||
| Ambient Temperature | -15 ~ 40 celsius | |||
| Storage Temperature | -20 ~ 70 celsius | |||
| Vibration | 3mm at 10~55Hz | |||
| Ambient humidity | 45 ~ 85% RH | |||
| Degree of Protection | IP52 | |||
| Recommended wire size | UL1007/22AWG | |||
| Document download |  |
|||
Mounting Bracket
| MAM-DS25 |  | MENICS Tower Light Accessory, 90 Degree, Wall Mount Bracket, Metal (For 20mm Threaded Pole) |
