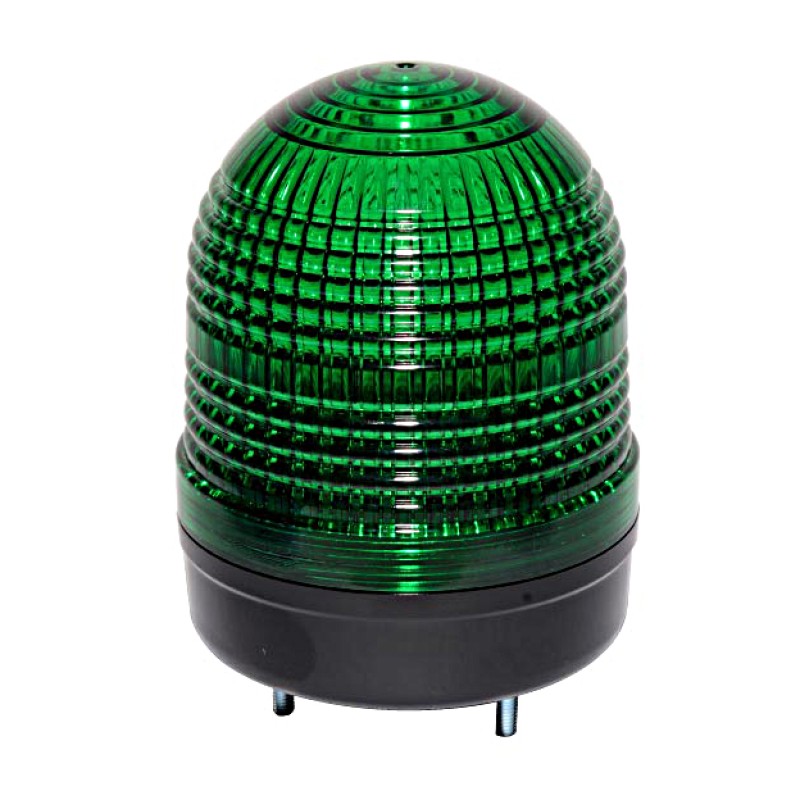

Beacon strobe light, 86mm green lens, Stud mount, Xenon bulb, 12-24V AC/DC 3W, IP65
- Brand: MENICS
- Product Code: MS86S-S00-G
- Availability: In Stock
$92.00
| Model | MS86L | MS86S | MS86T | ||||
| Style | LED Steady/Flashing | Xenon Strobe | LED Steady/Flashing/Rotating | ||||
| S-S | S-N | ||||||
| Power Supply | 24VAC/DC | 90~240VAC | 12-24VAC/DC | 110VAC220VAC | 12-24VAC/DC | 90~240VAC | |
| Current Consumption |
Red | 330mA | 30mA ~ 50mA | 78mA ~ 150mA | 30mA | 200~400mA | 32~55mA |
| Yellow | 330mA | 185~335mA | 30~50mA | ||||
| Green | 460mA | 170~300mA | 30~50mA | ||||
| Blue | 460mA | 220~370mA | 23~40mA | ||||
| Clear | 460mA | 160~275mA | 27~45mA | ||||
| Buzzer | 30mA | N/A | 150mA | ||||
| Certificate/Compliance | RoHS, UL | ||||||
| Flash rate | 80 time/min. +/- 3% | 60 time/min. +/- 3% | F1: 80 +/- 5 flashes/min. F3: coutinuous 4 flashes - 80 +/- 5 flashes/min.(emergency signal light) |
||||
| Rotation rate | N/A | Min. 60 ~ Max. 300 RPM (clockwise) | |||||
| Buzzer sound level | Max. 80dB | - | 10-100 +/- 5dB at 1meter | ||||
| Vibration | 0.75mm at 10 ~ 55Hz | ||||||
| Ambient Temperature | -20 ~ 40 celsius | ||||||
| Storage Temperature | -20 ~ 70 celsius | ||||||
| Ambient humidity | 45 ~ 85% RH | ||||||
| Degree of Protection | IP65 | ||||||
| Recommended wire size | PUR 5mm/PVC1.25mm 2P 0.3SQ, 300mm | UL 2464, 22 AWG X 2C, 300mm | UL1007/22AWG | ||||
| Weight | 150g | 300g | 200g | 170g | |||
