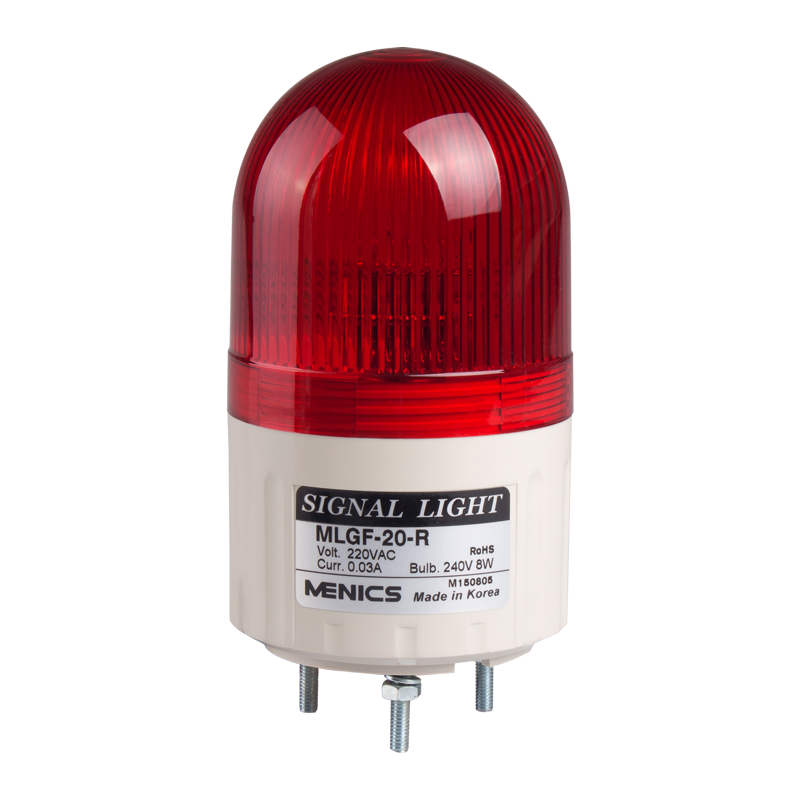

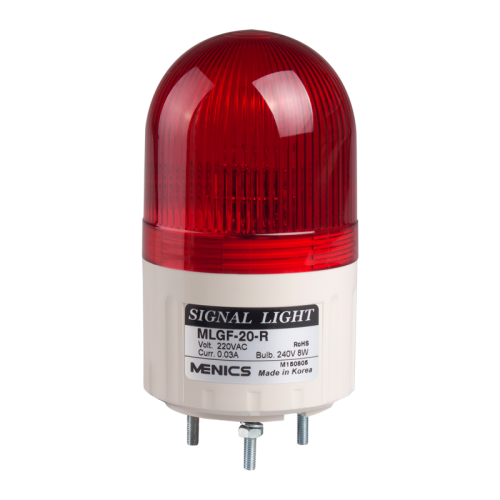

Beacon steady & flashing light, 66mm red lens, Stud mount, Incandescent bulb, 12V AC/DC 8W
- Brand: MENICS
- Product Code: MLGF-01-R
- Availability: In Stock
$29.44
| Model | MLG/MLP | MLGF/MLPF | MLGS/MLPS | |
| Style | Incandescent | Xenon | ||
| Power Supply | 12VAC/DC, 24VAC/DC, 110VAC, 220VAC | 110VAC, 220VAC | ||
| Current Consumption |
12V | 600mA, 8W | N/A | |
| 24V | 300mA, 8W | N/A | ||
| 110V | 70mA, 8W | 220mA, 6W | ||
| 220V | 30mA, 8W | 110mA, 6W | ||
| Certificate/Compliance | RoHS, CE | |||
| Flash rate | 80 ±5 flashes/min | |||
| Rotation rate | Approx. 130 RPM | N/A | ||
| Lens material | PC Plastic | |||
| Ambient Temperature | -15 ~ 40°C | |||
| Storage Temperature | -25 ~ 70°C | |||
| Ambient humidity | 45 ~ 85% RH | |||
| Degree of Protection | IP42 | |||
| Recommended wire size | 110/220VAC:VSF / 0.75mm², 12/24VAC/DC:UL1007/22AWG | VSF / 0.75mm² | ||
| Weight | 360g | |||
| Document download |  |
|||
- Incandescent or Xenon light
- Smooth lens or Prism cut lens
- Stud mounting or pole mounting
- Optional wall mounting brackets available
- Wide range of power supply
Mounting Bracket
| MAP-DS30-BGE |  | MENICS signal light accessory, Wall mount plastic bracket, Beige color (For MT, PRE & PME lights w/MAM-B070 base & ASG lights) | |
| MAP-DS30-BLK |  | MENICS signal light accessory, Wall mount plastic bracket, Black color (For MT, PRE & PME lights w/MAM-B070 base & ASG lights) | |
| MAM-DS26 |  | MENICS signal light accessory, Wall mount metal bracket, (For ML/AS Lights) |
