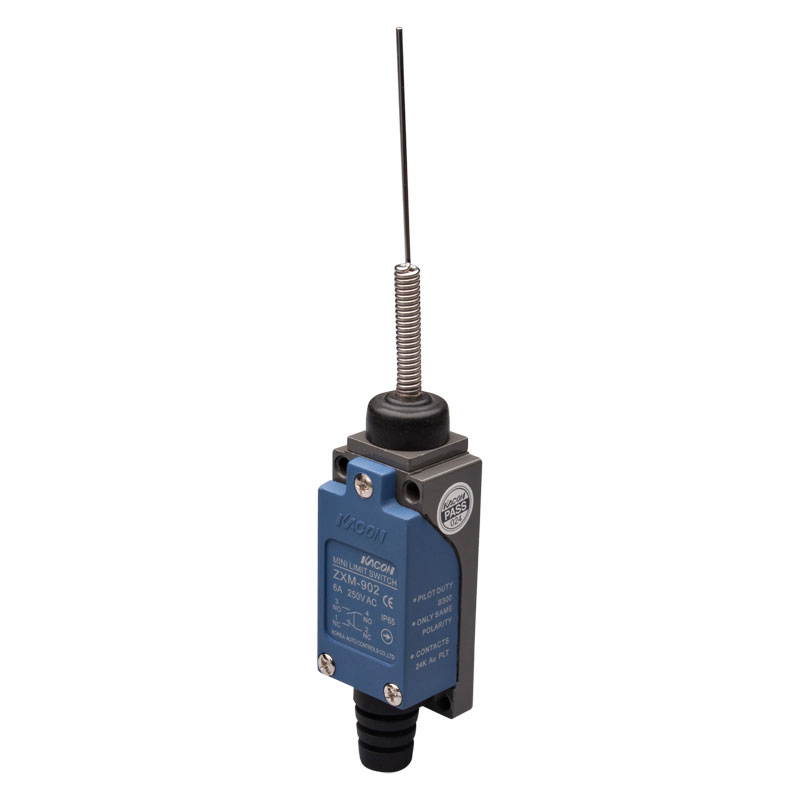

Limit Switch, 57x28x25mm Plastic cover/Al-die-casting body, 1 NO & 1 NC w/ Snap action, IP65, Spring wire rod actuator
- Brand: KACON
- Product Code: KXM-902
- Availability: In Stock
$19.76
| Contact arrangement | Ag Alloy, SPDT(1NO+1NC) | |
| Protection | IP65 | |
| Insulation resistance | 100MΩ at 500V DC | |
| Contact resistance | Max. 25mΩ | |
| Vibration | 10~55Hz (durable amplitude 1.5mm) | |
| Impact resistance | Durability | Max. 30G |
| Error | Max. 10G | |
| Ambient temperature | Operation: -20°C~ +60°C, Storage: -30°C~+80°C | |
| Ambient humidity | 90%RH Max. | |
| Operation speed | 0.1mm/sec~0.5m/sec | |
| Operation frequency | Electrical | Max. 30/min |
| Mechanical | Max. 120/min | |
| Dielectrical strength | 1,500VAC 1min | |
| Expected life | Electrical | Min. 300,000 |
| Mechanical | Min. 10,000,000 | |
| Weight | Approx. 130~190g | |
| Document downloads |  |
|
Contact Rating
| Rated voltage | Non-Inductive load | Inductive load | ||||||
| Resistive load | Lamp load | Inductive load | Motor load | |||||
| NO | NC | NO | NC | NO | NC | NO | NC | |
| 125VAC | 6A | 6A | 0.7A | 1.5A | 3A | 3A | 1A | 2A |
| 250VAC | 6A | 6A | 0.5A | 1A | 3A | 3A | 0.8A | 1.5A |
| 500VAC | 2A | 2A | 0.35A | 0.75A | 0.75A | 0.75A | 0.4A | 0.75A |
| 30VDC | 5A | 5A | 3A | 3A | 4A | 4A | 3A | 3A |
| 125VDC | 0.2A | 0.4A | - | - | - | - | - | - |
| 250VDC | 0.2A | 0.4A | - | - | - | - | - | - |
