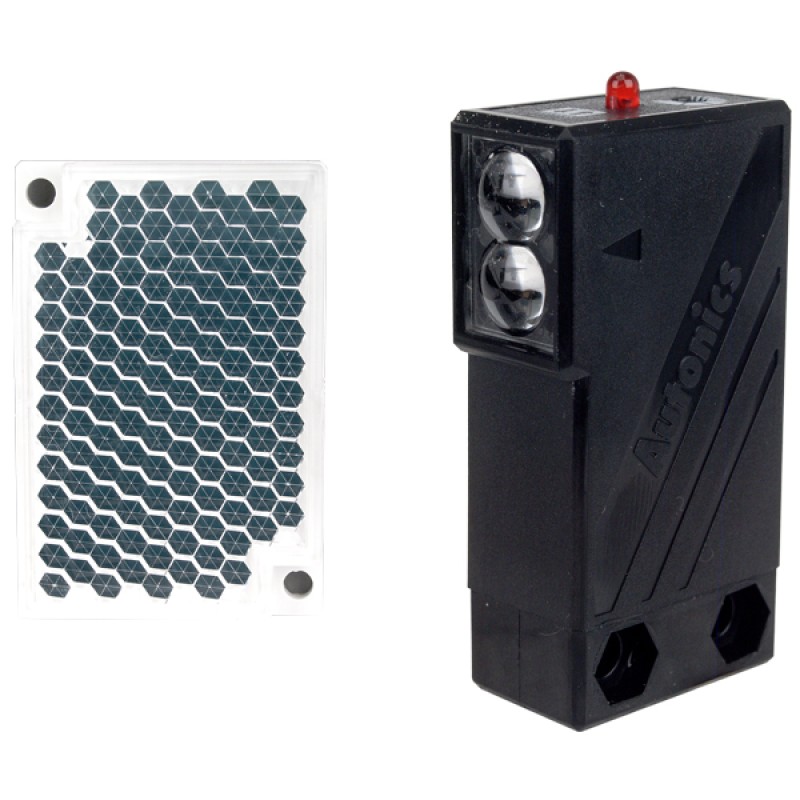

Autonics Photo Sensor, Retroreflective, 2m Sensing, Light & Dark On, NPN Output, 12-24 VDC
- Brand: AUTONICS
- Product Code: BMS2M-MDT
- Availability: In Stock
$73.00
BMS Series is a photo sensor that has capability to switch between Light On and Dark On modes and has a fast response rate of under 1ms. Various detection types including diffuse reflective type, through beam type, retroreflective type allow more diverse user application area.
Main Features
● Reverse power polarity and overcurrent
● High speed response : Max. 1ms
● Light ON/Dark ON mode selectable by control wire
● Built-in the sensitivity adjustment VR
(Except for through-beam type)
| Model | NPN open collector output | BMS5M-TDT | BMS2M-MDT | BMS300-DDT |
| PNP open collector output | BMS5M-TDT-P | BMS2M-MDT-P | BMS300-DDT-P | |
| Sensing type | Through-beam | Retroreflective | Diffuse reflective | |
| Sensing distance | 5m | 0.1 to 2m † 1 | 300mm † 2 | |
| Sensing target | Opaque materials of Min. Ø10mm | Opaque materials of Min. Ø60mm | Translucent, Opaque materials | |
| Hysteresis | - | Max. 20% at rated settingdistance | ||
| Response time | Max. 1ms | |||
| Power supply | 12-24VDC ±10%(Ripple P-P : Max. 10%) | |||
| Current consumption | Max. 50mA | Max. 45mA | ||
| Light source | Infrared LED(940nm) | |||
| Sensitivity adjustment | - | Adjustable VR | ||
| Response time | Selectable Light ON or Dark ON by control wire | |||
| Control output | NPN or PNP open collector output • Load voltage : Max. 30VDC • Load current : Max. 200mA • Residual voltage - NPN : Max. 1V, PNP : Max. 2.5V |
|||
| Protection circuit | Reverse power polarity, Output short-circuit(Overcurrent) protection circuit | |||
| Indicator | Operation indicator : red LED, Power indicator : red LED(BMS5M-TDT1) | |||
| Insulation resistance | Min. 20MΩ(at 500VDC megger) | |||
| Noise resistance | ±240V the square wave noise(pulse width : 1µs) by the noise simulator | |||
| Dielectric strength | 1000VAC 50/60Hz for 1 minute | |||
| Vibration | 1.5mm amplitude or 300m/s2 at frequency of 10 to 55Hz(for 1 min.) in each of X, Y, Z directions for 2 hours | |||
| Shock | 500m/s2(approx. 50G) in each of X, Y, Z directions for 3 times | |||
| Environment | Ambient Illumination | Sunlight : Max. 11,000lx, Incandescent lamp : Max. 3,000lx | ||
| Ambient temperature | -10 to 60°C, storage : -25 to 70°C | |||
| Ambient humidity | 35 to 85%RH, storage : 35 to 85%RH | |||
| Material | Case : ABS, Sensing part : Acrylic (Through-beam : PC) | |||
| Cable | Ø5, 4-wire, Length : 2m(Emitter of through-beam type: Ø5, 2-wire, Length : 2m) (AWG22, Core diameter : 0.08mm, Numner of cores : 60, Insulator out diameter : Ø1.25) |
|||
| Accessories | Individual | - | Reflector(MS-2), VR adjustment driver |
VR adjustment driver |
| Common | Mounting bracket, Bolts/nuts | |||
| Approval | CE | |||
| Unit weight | Approx. 180g | Approx. 110g | Approx. 100g | |
| Document download |  |
|||
† 2: It is for Non-glossy white paper(100x100mm)
† The temperature or humidity mentioned in Environment indicates a non freezing or condensation environment.
Dimensions
Connections
