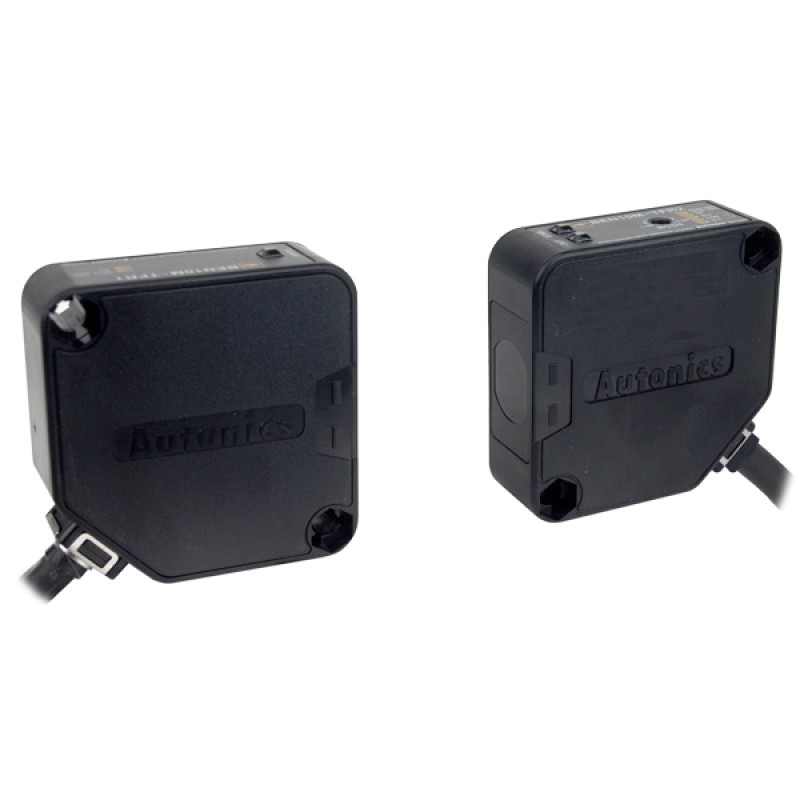

Autonics Photo Sensor, Through Beam, 10m Sensing, Light & Dark On, NPN & PNP Output, 12-24 VDC
- Brand: AUTONICS
- Product Code: BEN10M-TDT
- Availability: In Stock
$87.00
BEN Series is built-in amplifier type in a compact size. This type has an indicator to allow users to identify operation status of sensors from a long distance.
Main Features
● Small and power supply built-in type
● Easy installation with LED indicators on product
● Enables to set the operation mode by VR (Light ON/Dark ON)
● Status and output LED indication
● Built-in IC photo diode for ambient light and electrical noise
Applications
* Sensing for position, presence and absence of bottles in production lines
| Model | BEN10M-TDT | BEN5M-MDT | BEN3M-PDT | BEN300-DDT | |
| Sensing type | Through-beam | Retroreflective | Retroreflective (with polarizing filter) |
Diffuse reflective | |
| Sensing distance | 10m | 0.1 to 5m † 1 | 0.1 to 3m † 1 | 300mm † 2 | |
| Sensing target | Opaque materials of Min. ø16mm | Opaque materials of Min. ø60mm | Translucent, Opaque materials |
||
| Hysteresis | - | Max. 20% at ratedsetting distance |
|||
| Response time | Max. 1ms | ||||
| Response time | 12-24VDC ±10%(Ripple P-P: Max. 10%) | ||||
| Current consumption | Max. 50mA | ||||
| Light source | Infrared LED(850nm) | Red LED(660nm) | Infrared LED(940nm) | ||
| Sensitivity adjustment | - | Adjustment VR | |||
| Operation mode | Selectable Light ON or Dark ON by VR | ||||
| Control output | NPN open collector / PNP open collector simultaneous output • Load voltage: Max. 30VDC • Load current: Max. 200mA • Residual voltage - NPN: Max. 1V, PNP: Max. 2.5V |
||||
| Protection circuit | Reverse polarity protection, Short-circuit protection | ||||
| Light receiving element | Photo IC | ||||
| Indicator | Operation indicator : Red, Stability indicator : Green (The red lamp on Emitter of transmitted beam type is for power indication) |
||||
| Insulation resistance | Min. 20MΩ(at 500VDC megger) | ||||
| Noise resistance | ±240V the square wave noise(pulse width: 1µs) by the noise simulator | ||||
| Dielectric strength | 1000VAC 50/60Hz for 1 minute | ||||
| Vibration | 1.5mm amplitude or 300m/s2 at frequency of 10 to 55Hz(for 1 min.) in each of X, Y, Z directions for 2 hours | ||||
| Shock | 500m/s²(approx. 50G) in each of X, Y, Z directions for 3 times | ||||
| Environ-ment | Ambient illumination | Sunlight: Max. 11,000 Ix Incandescent lamp : Max. 3,000 lx(Receiver illumination) | |||
| Ambient temperature | -20 to 65°C, storage : -25 to 70°C | ||||
| Ambient humidity | 35 to 85%RH, storage : 35 to 85%RH | ||||
| Protection | IP50(IEC standard) | ||||
| Material | • Case, Case cover: Heat resistant ABS • Sensing part: PC(with polarizing filter: PMMA) |
||||
| Cable | ø5, 4-wire, Length: 2m(Emitter of through-beam type: ø5, 2-wire, Length: 2m) (AWG22, Core diameter: 0.08mm, Number of cores: 60, Insulator diameter: ø1.25) |
||||
| Accessory | Individual | - | Reflector(MS-2) | - | |
| Common | VR adjustment driver, Mounting bracket, Bolts/nuts | ||||
| Approval | CE | ||||
| Unit weight | Approx. 342g | Approx. 200g | Approx. 187g | ||
| Document download |  |
||||
† 2: It is for Non-glossy white paper(100×100mm)
† The temperature or humidity mentioned in Environment indicates a non freezing or condensation environment.
