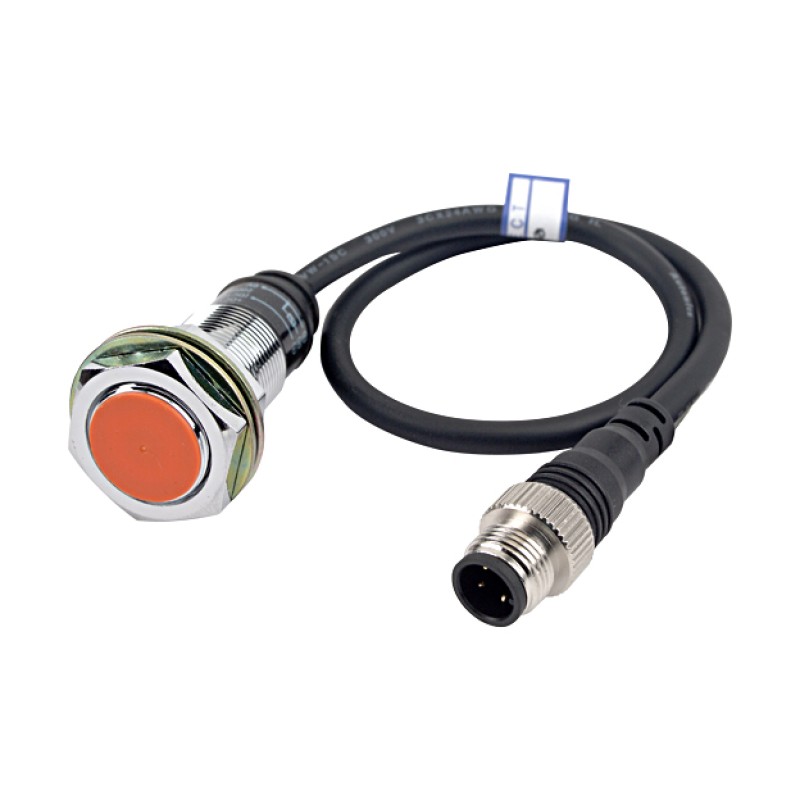

Autonics Proximity Sensor, 7mm Sensing, M18 Round, Shielded, PNP NO, 3 Wire, Pig tail connector, 10-30 VDC
- Brand: AUTONICS
- Product Code: PRDW18-7DP
- Availability: 2-3 Days
$53.00
PR Series enhance superior noise resistance characteristics with dedicated IC which Autonics self-developed. Also, the series can be widely used in any applications where proximity sensors are required because of diverse range of line-ups in terms of size and sensing distance.
Main Features
● Improved the noise resistance with dedicated IC
● Built-in reverse polarity protection circuit(DC 3-wire type)
● Built-in surge protection circuit
● Built-in overcurrent protection circuit(DC type)
● Long life cycle and high reliability, and simple operation
● Protection structure IP67(IEC standard)
● Replaceable for micro switches and limit switches
| Model | DC 2-wire type | DC 3-wire type | |||
| PRDT18-7⇾O PRDT18-7⇾C PRDT18-7⇾O-V PRDT18-7⇾C-V PRDLT18-7⇾O PRDLT18-7⇾C PRDLT18-7⇾O-V PRDLT18-7⇾C-V PRDWT18-7⇾O PRDWT18-7⇾C PRDWT18-7⇾O-I PRDWT18-7⇾C-I PRDWT18-7⇾O-IV PRDWT18-7⇾C-IV PRDWLT18-7⇾O-IV PRDWLT18-7⇾C-IV |
PRDT18-14⇾O PRDT18-14⇾C PRDT18-14⇾O-V PRDT18-14⇾C-V PRDLT18-14⇾O PRDLT18-14⇾C PRDLT18-14⇾O-V PRDLT18-14⇾C-V PRDWT18-14⇾O PRDWT18-14⇾C PRDWT18-14⇾O-I PRDWT18-14⇾C-I PRDWT18-14⇾O-IV PRDWT18-14⇾C-IV PRDWLT18-14⇾O-IV PRDWLT18-14⇾C-IV |
PRD18-7DN PRD18-7DP PRD18-7DN2 PRD18-7DP2 PRDL18-7DN PRDL18-7DP PRDL18-7DN2 PRDL18-7DP2 PRDW18-7DN PRDW18-7DP PRDW18-7DN2 PRDW18-7DP2 PRDW18-7DN-V PRDW18-7DP-V PRDWL18-7DN PRDWL18-7DP PRDWL18-7DN2 PRDWL18-7DP2 |
PRD18-14DN PRD18-14DP PRD18-14DN2 PRD18-14DP2 PRDL18-14DN PRDL18-14DP PRDL18-14DN2 PRDL18-14DP2 PRDW18-14DN PRDW18-14DP PRDW18-14DN2 PRDW18-14DP2 PRDW18-14DN-V PRDW18-14DP-V PRDWL18-14DN PRDWL18-14DP PRDWL18-14DN2 PRDWL18-14DP2 |
||
| Sensing distance | 7mm | 14mm | 7mm | 14mm | |
| Hysteresis | Max. 10% of sensing distance | ||||
| Standard sensing target | 20x20x1mm? (Iron) |
40x40x1mm? (Iron) |
20x20x1mm? (Iron) |
40x40x1mm? (Iron) |
|
| Sensing distance | 0 to 4.9mm | 0 to 9.8mm | 0 to 4.9mm | 0 to 9.8mm | |
| Power supply (Operating Voltage) | 12-24VDC (10-30VDC) | ||||
| Leakage current | Max. 0.6mA | - | |||
| Current consumption | - | Max. 10mA | |||
| Response frequency† 1 | 250Hz | 200Hz | 300Hz | 200Hz | |
| Residual Voltage† 2 | Max. 3.5V(for non-polarity type, max. 5V) | Max. 1.5V | |||
| Affection by Temp. | Max. ±10% for sensing distance at ambient temperature 20°C | ||||
| Control output | 2 to 100mA | 200mA | |||
| Insulation resistance | Min. 50MΩ(at 500VDC megger) | ||||
| Dielectric strength | 1500VAC 50/60Hzfor 1 minute | ||||
| Vibration | 1mm amplitude at frequency of 10 to 55Hz(for 1 min.) in each of X, Y, Z directions for 2 hours | ||||
| Shock | 500m/s²(approx. 50G) X, Y, Z directions for 3 times | ||||
| Indicator | Operation indicator(red LED) | ||||
| EnVironment | Ambient temperature | -25 to 70°C, Storage : -30 to 80°C | |||
| Ambient humidity | 35 to 95%RH, Storage :35 to 95%RH | ||||
| Protection circuit | Surge protection circuit, ReVerse polarity proteciton circuit, OVercurrent protection circuit | ||||
| Material | Case/Nut: Nickel plated Brass, Washer: Nickel plated Iron, Sensing surface: Heat-resistant ABS, Standard cable(Black): PolyVinyl chloride(PVC), Oil resistant cable(Gray): Oil resistant PolyVinyl chloride(PVC) |
||||
| Cable | Ø5, 2-wire, 2m | ||||
| (For cable type, 300mm, M12 connector), (AWG22, Core diameter: 0.08mm, Number of cores: 60, Insulator diameter: Ø1.25) | |||||
| ApproVal | CE | ||||
| Protection | IP67(IEC Standard) | ||||
| Unit weight | PRDT:? Approx. 115g PRDLT:? Approx. 145g PRDWT:? Approx. 80g PRDWLT:? Approx. 42g |
PRDT:? Approx. 110g PRDLT:? Approx. 140g PRDWT:? Approx. 75g PRDWLT:? Approx. 105g |
PRD:? Approx. 115g PRDL:? Approx. 145g PRDW:? Approx. 80g PRDWL:? Approx. 110g |
PRD: Approx. 110g PRDL:? Approx. 140g PRDW:? Approx. 75g PRDWL:? Approx. 105g |
|
| Document download |  |
||||
† 2: Before using non-polarity type, check the condition of connected diVice because residual Voltage is 5V.
† The '⇾' of model name is for power type. 'D' is 12-24VDC, 'X' is non-polarity12-24VDC.
† The last 'V' of model name is for the model with oil-resistance reinforced cable.
† EnVironment resistance is rated at no freezing or condensation.
