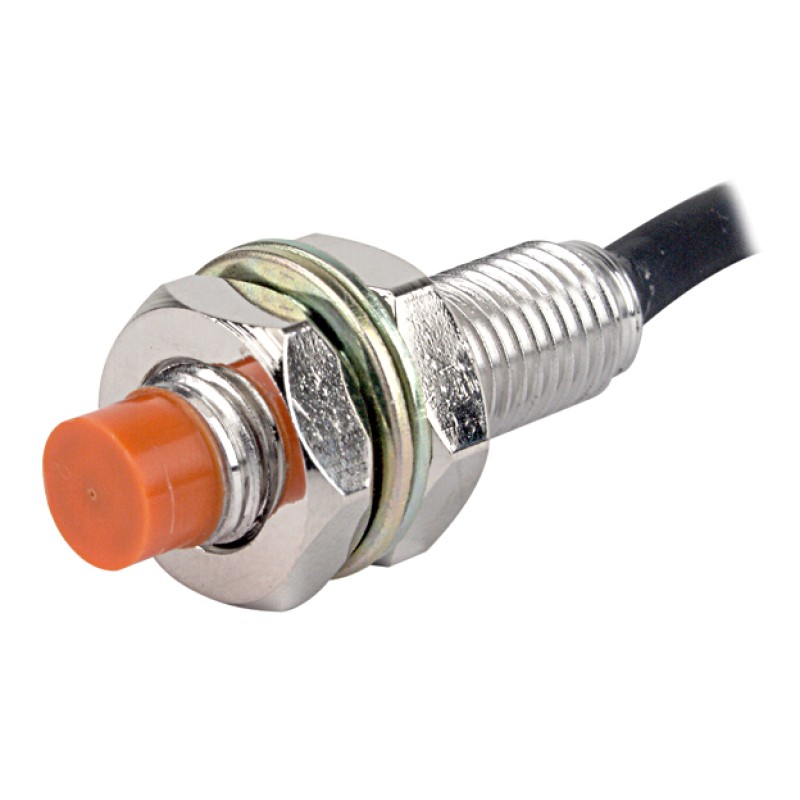

Autonics Proximity Sensor, 2mm sensing, M8 Round, Non-Shielded, NC, 2 Wire, 2m cable, 15-30 VDC
- Brand: AUTONICS
- Product Code: PRT08-2DC
- Availability: In Stock
$47.00
PR Series enhance superior noise resistance characteristics with dedicated IC which Autonics self-developed. Also, the series can be widely used in any applications where proximity sensors are required because of diverse range of line-ups in terms of size and sensing distance.
Main Features
● Improved the noise resistance with dedicated IC
● Built-in reverse polarity protection circuit(DC 3-wire type)
● Built-in surge protection circuit
● Built-in overcurrent protection circuit(DC type)
● Long life cycle and high reliability, and simple operation
● Protection structure IP67(IEC standard)
● Replaceable for micro switches and limit switches
| Model | PRT08-1.5DO PRT08-1.5DC |
PRT08-2DO PRT08-2DC |
PR08-1.5DN PR08-1.5DP PR08-1.5DN2 PR08-1.5DP2 PRL08-1.5DN PRL08-1.5DP PRL08-1.5DN2 PRL08-1.5DP2 | PR08-2DN PR08-2DP PR08-2DN2 PR08-2DP2 PRL08-2DN PRL08-2DP PRL08-2DN2 PRL08-2DP2 | |
| Sensing distance | 1.5mm | 2mm | 1.5mm | 2mm | |
| Hysteresis | Max. 10% of sensing distance | ||||
| Standard sensing target | 8x8x1mm (Iron) | ||||
| Sensing distance | 0 to 1.05mm | 0 to 1.4mm | 0 to 1.05mm | 0 to 1.4mm | |
| Power supply (Operating voltage) | 12-24VDC (10-30VDC) | ||||
| Current consumption | Max. 0.6mA | - | |||
| Leakage Current | - | Max. 10mA | |||
| Response frequency† 1 | 1.5kHz | 1kHz | 1.5kHz | 1kHz | |
| Residual voltage† 2 | Max. 3.5V(Non-polarity type is Max. 5V) | Max. 2.0V | |||
| Affection by Temp. | Max. ±10% for sensing distance at ambient temperature 20°C(For PRT08 series : ±20% Max.) | ||||
| Control output | 2 to 100mA | Max. 200mA | |||
| Insulation resistance | Min. 50MΩ(at 500VDC megger) | ||||
| Dielectric strength | 1500VAC 50/60Hz for 1 minute | ||||
| Vibration | 1mm amplitude at frequency of 10 to 55Hz(for 1 min.) in each of X, Y, Z directions for 2 hours | ||||
| Shock | 500m/s²(approx.50G) in X, Y, Z direction for 3 times | ||||
| Indicator | Operation indicator(red LED) | ||||
| Environment | Ambient temperature | -25 to 70°C, Storage : -30 to 80°C | |||
| Ambient humidity | 35 to 95% RH, Storage :35 to 95% RH | ||||
| Protection circuit | Surge protection circuit | ||||
| Protection | IP67(IEC standard) | ||||
| Cable | Ø3.5, 3-wire, 2m (AWG24, Core diameter : 0.08mm, Number of cores : 40, Insulator diameter: Ø1) |
||||
| Material | Case/Nut: Nikel plated Brass, Washer : Nikel plated Iron, Sensing surface: PBT, Standard cable(Black) : Polyvinyl chloride(PVC), Oil resistant cable(Gray) : Oil resistant Polyvinyl chlorde(PVC) |
||||
| Approval | CE, RoHS(PRL) | ||||
| Weight† 3 | Approx. 64g (Approx. 52g) |
PR: Approx. 64g(Approx. 52g) PRL: Approx. 66g(Approx. 54g) |
|||
| Document download |  |
||||
the standard sensing target, 1/2 of the sensing distance for the distance.
† 2: Before using non-polarity type, check the condition of connected divice because residual voltage is 5V.
† 3: The weight with packaging and the weight in parentheses is only unit weight.
† Environment resistance is rated at no freezing or condensation.
