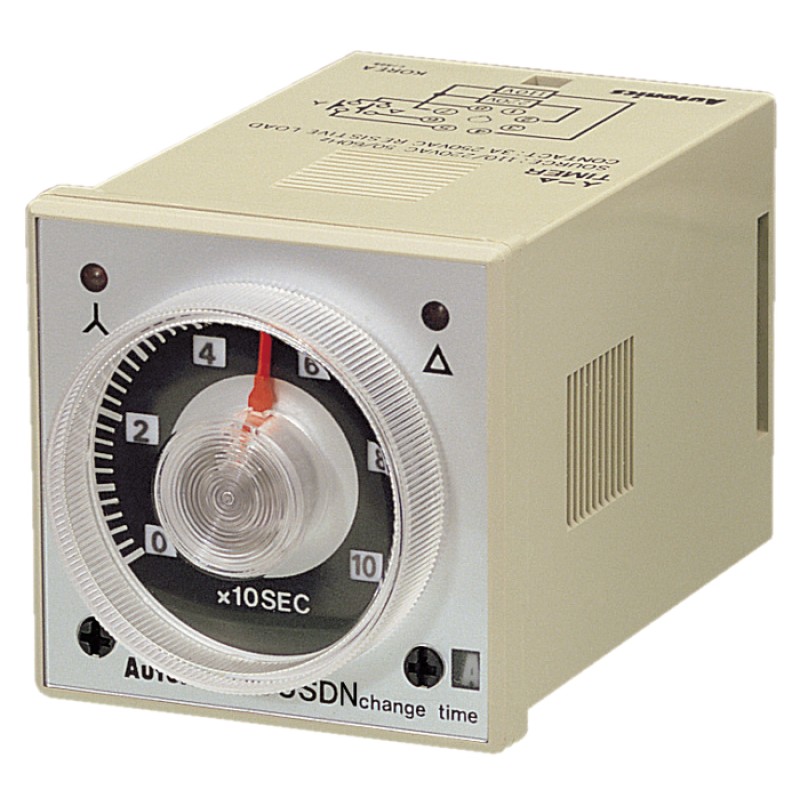

Autonics Timer, 1/16 DIN, Star Delta, 0.05sec - 100hr setting range, SPST & SPST, 100-240VAC/24-240 VDC, (8 pin socket req'd)
- Brand: AUTONICS
- Product Code: AT8SDN
- Availability: In Stock
$70.00
| Model | AT8SDN | |
| Function | Star-delta timer | |
| Control time setting range | 0.5 to 100 sec. | |
| Power supply | 100-240VAC 50/60Hz / 24-240VDC universal | |
| Allowable voltage range | 90 to 110% of rated voltage | |
| Power consumption | 100-240VAC : 3.2VA, 24-240VDC : 1.5W | |
| Reset time | Max. 100ms | |
| Timing operation | Power ON start type | |
| Control | Contact type | ∧contact : SPST(1a), △ contact : SPST(1a) |
| output | Contact capacity | 250VAC 5A resistive load |
| Relay | Mechanical | Min. 10,000,000 operations |
| life cycle | Electrical | Min. 100,000 operatlons(250VAC 5A resistive load) |
| Repeat error | Max. ±0.2% ±10ms | |
| ASettlng error | Max. ±5% ±50ms | |
| Voltage error | Max. ±0.5% | |
| Temperature error | Max. ±2% | |
| Switching time error | Max. ±25% | |
| Insulation resistance | 100MΩ(at 500VDC megger) | |
| Dielectric strength | 2000VAC 50/60Hz for 1 minute | |
| Noise strength | ±2kV the square wave noise(pulse width : 1µs) by the noise simulator | |
| Vibration | Mechanical | 0.75mm amplitude at frequency of 10 to 55Hz(for 1 min.) In each of X, Y, Z directions for 1 hours |
| Malfunction | 0.5mm amplitude at frequency of 10 to 55Hz (for 1 min.) In each of X, Y, Z directions for 10 minutes | |
| Shock | Mechanical | 300m/s²(approx. 30G) in each of X, Y, Z directions for 3 times |
| Malfunction | 100m/s²(approx. 10G) in each of X, Y, Z directions for 3 times | |
| Environ-ment | Ambient temperature | -10 to 55°C, storage: -25 to 65°C |
| Ambient humidity | 35 to 85%RH, storage: 35 to 85%RH | |
| Approval | CE, UL | |
| Accessory | Bracket | |
| Unit weight | Approx. 90g | |
