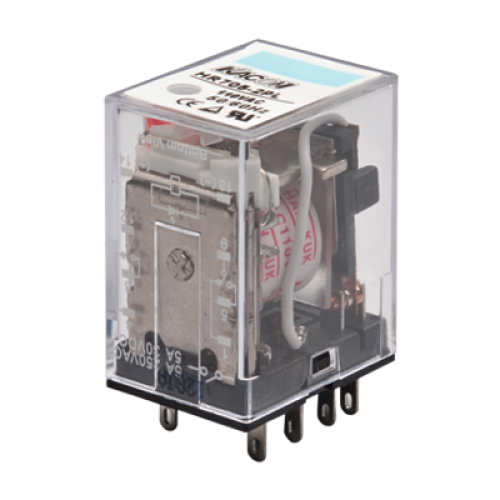

Electro Mechanical Relay, Cube type, 5A 4PDT, 110VDC coil input, LED Indiator, Surge protection, (socket req'd)
- Brand: KACON
- Product Code: HR705-4PLD-110VDC
- Availability: 2-3 Days
$10.52
| KMY4 |  | KMY4, Relay socket for 505-4P, HR705-4P series, 14 pins, DIN Rail, Black color | |
| KMY4S |  | KMY4S, Relay socket for 505-4P, HR705-4P series, 14 pins, DIN Rail, Green color |
| Contact specifications | ||
| Configuration | 2PL | 4PL |
| DPDT (2NO + 2NC) | 4PDT (4NO + 4NC) | |
| Material | Silver alloy (24K gold plate) | |
| Rate current | 5A | 3A |
| Rated max. resistive load | 5A at 24VDC/240VAC | 3A at 24VDC/240 VAC |
| Max switching voltage | 125VDC/250VAC | |
| Min. switching requirement | 100mA 5VDC | |
| Coil specifications | ||
| Voltage range | 12VDC to 110VDC,12VAC to 240VAC | |
| Power consumption | AC: 0.9VA approx., DC: 0.9W approx. | |
| Minimum operating voltage | 80% of rated coil voltage | |
| Max. Dropout voltage | DC Coil: 10% of rated voltage | |
| AC Coil: 30% of rated voltage | ||
| General information | ||
| Operating Time | 20ms | |
| Dropout time | 20ms | |
| Isulation resistance | 100mΩ min. (500VDC) | |
| Dielectric strength | Between contacts: 1,000Vrms 1 min. | |
| Between contact & coil: 1,500Vrms 1 min. | ||
| Mechnical life | 1,000,000 operations | |
| Electrical life | 100,000 operations | |
| Vibration resistanceFunctional | 10~55Hz at double amplitude of 1.5mm | |
| Ambient temperature | -25°C ~ +55°C (-13°F ~ +131°F) at non freezing | |
| Ambient humidity | 35~85% RH | |
| Weight | Approx. 33g (1.2oz) | |
| Socket | ||
| Part number | KMY2(Rail), KY08-02(PCB) | KMY4(Rail), KY14-02(PCB) |
| Terminal tightened torque | 0.5N • m (5.10kgf • cm) | |
| Approval |  |
|
| Document download |  |
|
