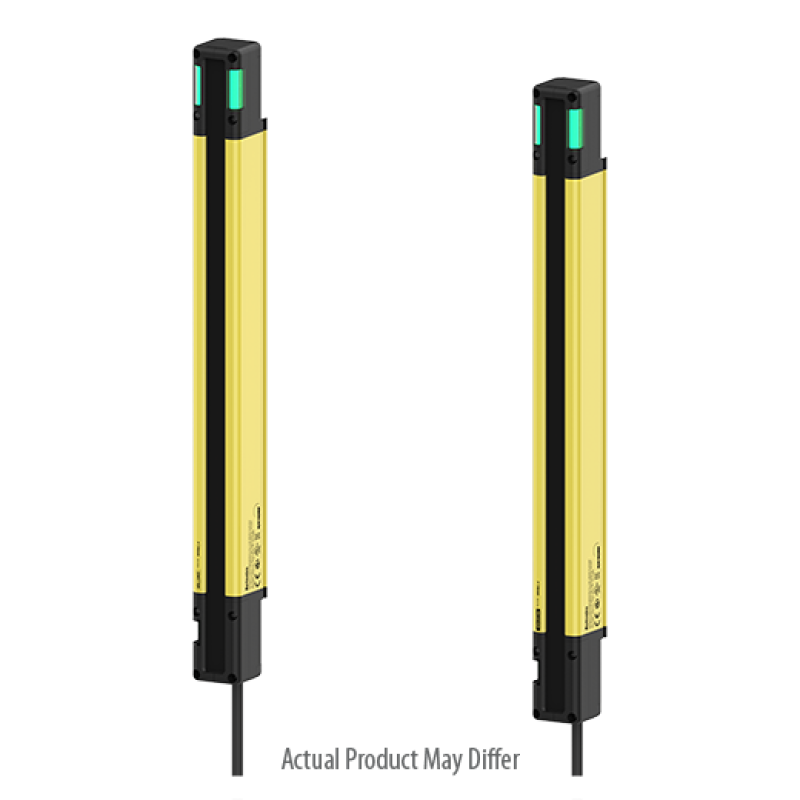

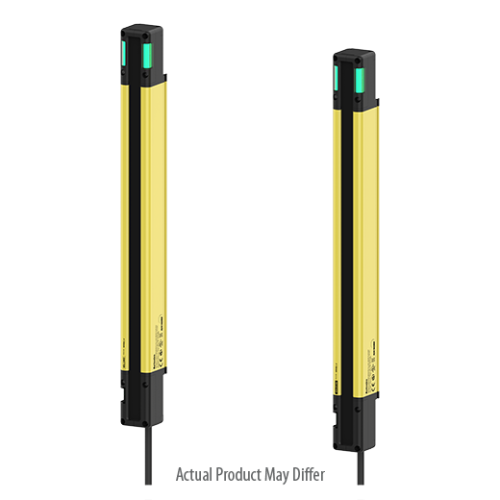

Safety Light Curtains, Advanced type, Through-beam, 15M Sensing distance, 72pcs & 25mm Optical axis pitch, 1,793mm length, 24VDC

Safety Light Curtains, Advanced type, Through-beam, 15M Sensing distance, 72pcs & 25mm Optical axis pitch, 1,793mm length, 24VDC

  • Brand: AUTONICS
  • Product Code: SFLA30-72
  • Availability: 2-3 Days

  • $3,247.00


Qty

The SFL/SFLA series safety light curtains are installed in potentially dangerous or hazardous areas to safeguard personnel from injury. The light curtains feature proven technology from Autonics area sensors and mapping sensors. The light curtains are built to meet international safety standards and regulations. Various detection models (finger/hand/hand-body detection) and safety functions are available for diverse applications. For SFLA series, The dedicated software atLightCurtain allows real-time status monitoring user settings such as automatic muting/blanking area functions.

Main Features

  • International safety standard and regulation compliance: Type 4 ESPE(AOPD), SIL3, SIL CL3, Category 4, PL e, CE, UL Listed, S-Mark
  • 3 detection type models available (finger, hand, hand-body detection)
  • Various safety-related functions & self-diagnosis functions
  • Selectable detection distance (short/long mode) & Switch control output settings (NPN/PNP output)
  • Operation status reading with 7-segment display and LED indicators
  • Easy beam adjustment with top and bottom beam indicators
  • Output display indicator on top displays light received/blocked status and muting status. Additional lamp not required.
  • 4 non-safety outputs for various applications (2 AUX, 2 lamp)
  • Detail function settings with dedicated software “atLightCurtain” (SFLA models)
