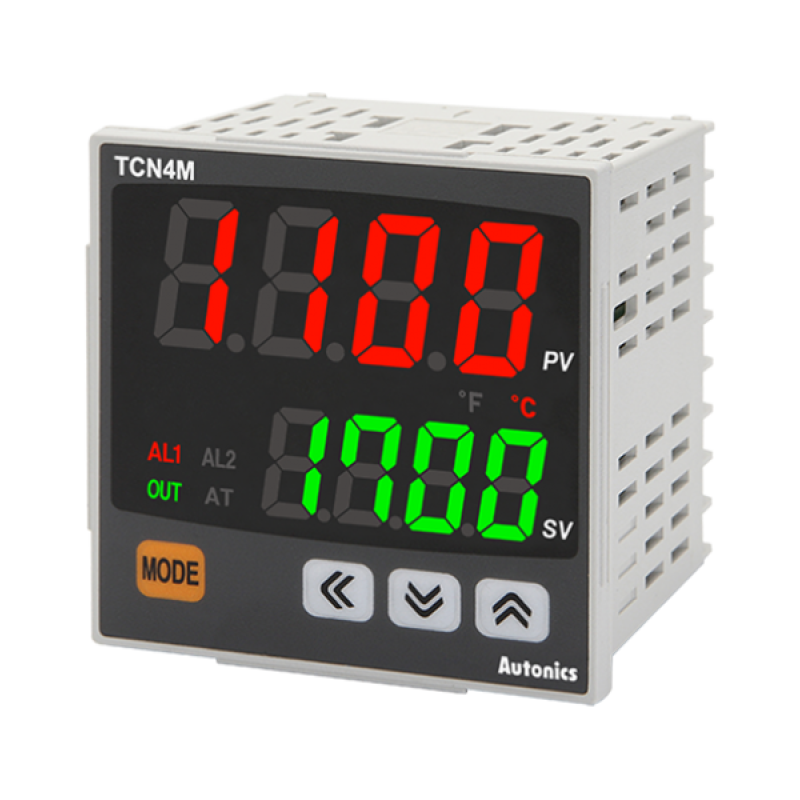

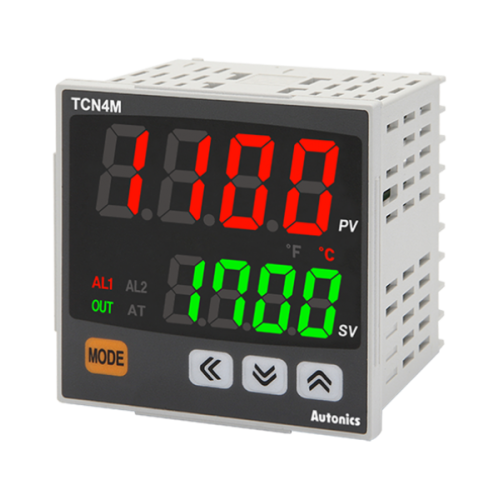

PID Temp Control, W72 x H72, Dual display 4 Digit, Relay & SSR output, 2 alarm output, 24 VAC/24-48 VDC
- Brand: AUTONICS
- Product Code: TCN4M-22R
- Availability: 2-3 Days
$141.00
TCN Series is economical temperature controllers having dual preset indicator display to increase user convenience. The series realizes ideal temperature controlling with newly developed PID control algorithm and 100ms high speed sampling; in addition, the series allows users to take advantage of economical controlling with SSRP and relay outputs. The TCN Series is also available in low voltage models for wider user options.
Main features| Series | TCN4S | TCN4M | TCN4H | TCN4L | |
| Power | AC power | 100-240VAC 50/60Hz | |||
| supply | AC/DC power | 24VAC 50/60Hz, 24-48VDC | |||
| Allowable voltage range | 90 to 110% of rated voltage | ||||
| Power consumption | Max. 5VA(100-240VAC 50/60Hz, 24VAC 50/60Hz) | ||||
| Max. 3W(24-48VDC) | |||||
| Display method | 7 Segment (PV: red, SV: green), Other display(green, red) LED | ||||
| Character | PV(WxH) | 7.0x15.0mm | 9.5x20.0mm | 7.0x14.6mm | 11.0x22.0mm |
| size | SV(WxH) | 5.0x9.5mm | 7.5x15.0mm | 6.0x12.0mm | 7.0x14.0mm |
| Input | RTD | DPt100Ω, Cu50Ω(Allowable line resistance max. 5Ω per a wire) | |||
| type | Thermocouple | K(CA), J(IC), L(IC), T(CC), R(PR), S(PR) | |||
| Display | RTD | • At room temperature (23°C ±5°C): (PV ±0.5% or ±1°C, select the higher one) ±1digit • Out of room temperature range: (PV ±0.5% or ±2°C, select the higher one) ±1digit |
|||
| Display accuracy¶ 1 |
Thermocouple | ||||
| Control output | Relay | 250VAC 3A 1 a | |||
| SSR | 12VDC ±2V 20mA Max. | ||||
| Alarm output | AL1, AL2 Relay output : 250VAC 1A 1a | ||||
| Control method | ON/OFF and P, PI, PD, PID control | ||||
| Hysteresis | 1 to 100°C/°F (0.1 to 50.0°C/°F) variable | ||||
| Proportional band (P) | 0.1 to 999.9°C/°F | ||||
| Integral time (I) | 0 to 9999 sec. | ||||
| Derivative time (D) | 0 to 9999 sec. | ||||
| Control period (T) | 0.5 to 120.0 sec. | ||||
| Manual reset | 0.0 to 100.0% | ||||
| Sampling period | 100ms | ||||
| Dielectric strength | AC Power | 2,000VAC 50/60Hz 1min.(between input terminal and power terminal) | |||
| AC/DC power | 1,000VAC 50/60Hz 1min.(between input terminal and power terminal) | ||||
| Relay life cycle |
Mechanical | OUT: Over 5,000,000 times, AL1/2: Over 5,000,000 times | |||
| Electrical | OUT: Over 200,000 times(250VAC 3A resistive load) AL1/2: Over 300,000 times(250VAC 1A resistive load) | ||||
| Vibration | 0.75mm amplitude at frequency of 5 to 55Hz in each of x, Y, Z directions for 2 hours | ||||
| Insulation resistance | Min. 100MΩ (at 500VDC megger) | ||||
| Noise resistance | ±2kV R-phase, S-phase the square wave noise (pulse width: 1us) by the noise simulator | ||||
| Memory retention | Approx. 10 years (when using non-volatile semiconductor memory type) | ||||
| Environment | Ambient temperature | -10 to 50°C, storage: -20 to 60°C | |||
| Ambient humidity | 35 to 85%RH, storage: 35 to 85%RH | ||||
| Insulation type | Double insulation or reinforced insulation (mark: §, Dielectric strength between the measuring input part and the power part: AC power 2kV, AC/DC Power 1kV) | ||||
| Approval | CE, UL | ||||
| Noise resistance | Approx. 147g(Approx. 100g) | Approx. 203g (Approx. 133g) | Approx. 194g (Approx. 124g) | Approx. 275g (Approx. 179g) | |
| Document download |  |
||||
¶ 1 : At room temperature (23°C ±5°C)
• Thermocouple C R, S type, below 200°C: (PV ±0.5% or ±3°C, select the higher one) ±1digit
• Thermocouple R, S type, over 200°C: (PV ±0.5% or ±2°C, select the higher one) ±1digit
• Thermocouple L(IC) type, RTD Cu50Ω: (PV ±0.5% or ±2°C, select the higher one) ±1digit
Out of room temperature range
• Thermocouple R, S type, below 200°C: (PV ±1.0% or ±6°C, select the higher one) ±1digit
• Thermocouple R, S type, over 200°C: (PV ±0.5% or ±5°C, select the higher one ±1digit
• RTD Cu50Ω: (PV ±0.5% or ±3°C, select the higher one) ±1digit
¶ 2: The weight is with packaging and the weight in parentheses is only unit weight.
¶ Environment resistance is rated at no freezing or condensation.
