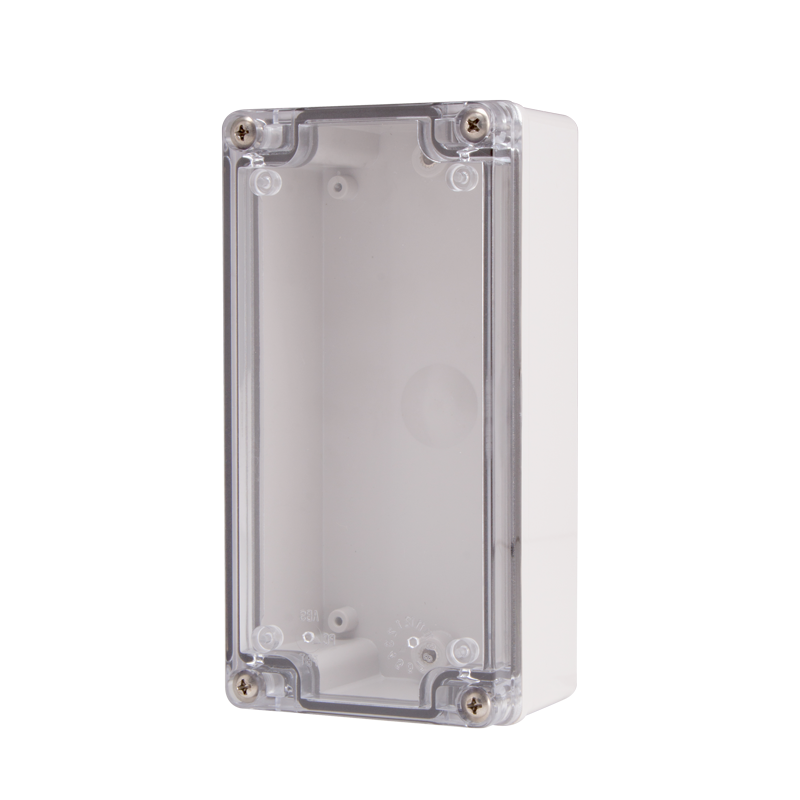

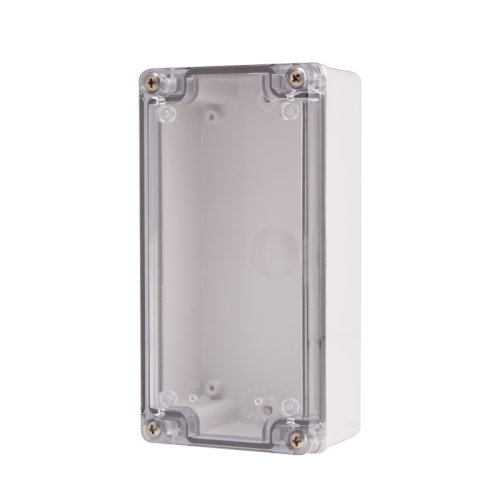

Plastic Enclosure, ABS gray body & PC clear cover, S-type for Lift-off screw cover, W3.15 x L6.30 x D2.17" size, IP67

Plastic Enclosure, ABS gray body & PC clear cover, S-type for Lift-off screw cover, W3.15 x L6.30 x D2.17" size, IP67

  • Brand: BOXCO
  • Product Code: BC-ATS-081605
  • Availability: In Stock

  • $15.00


Qty
  • Lift off screw cover & smooth side walls
  • Clear or light grey cover available
  • Mounting brackets, steel/plastic back panels, draw latch lock & water proof lock available
  • Excellent UV resistance (polycarbonate models)

    •

    Protection Level Dust/Water proof: IP66/67, NEMA 4X/6
    Impact test: IK07/08
    Certification UL508A(PC), CE, TUV, RoHS
    Temperature range ABS: -40°C to 70°C (-40°F to 158°F)
    PC: -40°C to 110°C (-40°F to 230°F)
    Flammability Rating ABS: UL94-HB
    PC: UL94-V-0, 5VA, 94-HB
    Catalog
    Drawing

    Tags: Plastic Enclosure, ABS gray body & PC clear cover, S-type for Lift-off screw cover, W3.15 x L6.30 x D2.17" size, IP67
