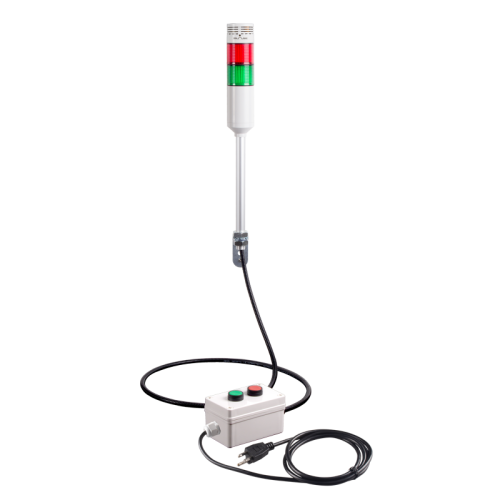

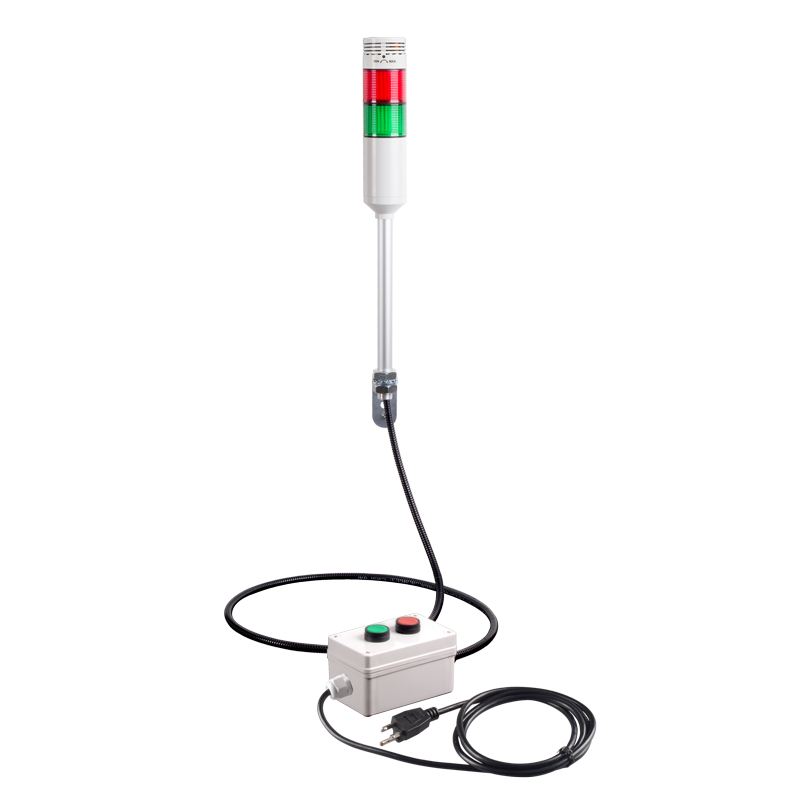

Andon Light, Remote push button control box, w/15ft cable, 9.45" pole w/ L Bracket, Red flashing & Buzzer, Green steady, Adjustable 10-100dB Buzzer, 110VAC, 6ft power cord
- Brand: MENICS
- Product Code: ATEPR-15-RG-Z
- Availability: In Stock
$253.00
| Model | ATE{Switch}-{Color}-{Buzzer} | |||
| Switch Type | P | Pushbutton | ||
| S | Selector Switch | |||
| Color | R | red | ||
| Y | yello | |||
| G | green | |||
| RY | red,yellow | |||
| RG | red,green | |||
| RYG | red,yellow,green | |||
| RYGB | red,yellow,green,blue | |||
| RYGBC | red,yellow,green,blue,clear | |||
| Buzzer Type | no mark | No buzzer | ||
| B | 80dB Buzzer | |||
| Z | 10-100dB Buzzer | |||
| Power Supply | 110V AC 50/60 Hz (±10%) | |||
| Lens Diameter | 56 mm (2.2 inch) | |||
| Flash Rate | 80 times/ minute | |||
| Vibration | 0.75mm at 10~55Hz | |||
| Ambient Temperature | -15°C~40°C | |||
| Storage Temperature | -20°C ~ 70°C | |||
| Ambient Humidity | 45~85% RH | |||
| Pole length | 9.45”(optional: 29.53”, 39.37”) | |||
| Power Cord | 3 prong 6ft installed | |||
| LED Modules | Red | 17mA | ||
| Yellow | 17mA | |||
| Green | 22mA | |||
| Blue | 22mA | |||
| Clear | 22mA | |||
| Buzzer Modules | Type | B | Z | |
| Style | Fixed sound | Adjustable | ||
| Sound Level | 80±5dB | 10 ~ 100±5dB | ||
| Current Consumption | 30mA | 150mA | ||
| Document download |  |
|||
