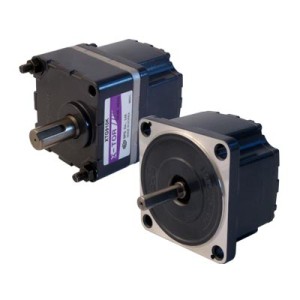

BLDC Motors

Click on a Rated Torque to view specific products

BLDC Motor (XWA), Single phase, 110V AC 60Hz
Gear ratio	5	10	15	20	30	50	100	200
Speed (rpm)	20-400	10-200	6.7-133	5-100	3.3-67	2-40	1-20	0.5-10
Output Power                     Rated torque (N.m)
10W /  60mm sq	0.22	0.45	0.68	0.9	1.3	2.1	4.2	6
25W / 80mm sq	0.56	1.12	1.68	2.2	3.2	5.3	10.6	16
40W / 90mm sq	0.9	1.8	2.7	3.6	5.1	8.5	17	30
90W / 90mm sq	2.1	4.1	6	8	11.5	19.3	30	30

Click on a Rated Torque to view specific products

BLDC Motor (XBM), Single phase, 110V AC 60Hz
Gear ratio	5	10	15	20	30	50	100	200
Speed (rpm)	60-600	30-300	20-200	15-150	10-100	6-60	3-30	1.5-15
Output Power                     Rated torque (N.m)
20W /  60mm sq	0.29	0.59	0.88	1.2	1.7	2.8	5.6	6
40W / 80mm sq	0.59	1.2	1.8	2.3	3.4	5.6	11.2	16
75W / 90mm sq	1.1	2.3	3.4	4.5	6.5	10.8	21.5	30
120W / 90mm sq	1.8	3.6	5.4	7.2	10.3	17.2	30	30
150W / 90mm sq	2.7	5.4	8.1	10.8	15.4	25.8	30	30

General Specifications

Item	MOTOR	CONTROL UNIT
Dielectric Strength	If applying 60HZ, 1,500V between the coil and the case for 1 minute after continuous operating under normal temperature and humidity conditions, any fault is not occurred.	If applying 60Hz, 1,500V between protection ground terminal and power input for 1 minute, any fault is not occurred.
Insulation Resistance	After continuous operating under normal temperature and humidity conditions, if measured the resistance value between the coil and the case using DC500V Mega Tester, should be over 100㏁.	If the resistance value between protection ground terminal and power input is measured using DC500V Mega Tester, should be over 100㏁.
Ambient Temperature	32℉ to 104℉ (no freezing)	32℉ to 104℉ (no freezing)
Ambient Humidity	Less than 85% (no dew condensation)
Ambience	No corrosive gas or dust.
Protection Class	IP65 (excluding the output shaft side)	IP10 (excluding the output shaft side)

※ Caution : Use it, ensuring that surface temperature of motor does not exceed over 194℉.


Commonalities

Category	Specifications
SLOW RUN / SLOW STOP	0.5 to 15 seconds (Applicable for both Slow Run and Slow Stop)
Speed Control	1. Built-in Potentiometer 2. External Potentiometer (20㏀ 1/4W) 3. external DC Voltage (0~5V)
Input Signal	Photocoupler input method, input resistance: 3㏀, operates at DC 24V±10%, common for EXT., CW, and CCW
Output Signal	Opencollector output, external use conditions: Less than 26.4V 10mA, common for Speed Out and Alarm Out.
Protection Feature	If following protection functions are operated, control unit alarm signal is output and motor come to stop. ㆍOverload protection : If load exceeds a rated torque in the motor, is approved over approximately 5 seconds. ㆍOvervoltage protection : If voltage approved in control unit, exceeds top limit in the rated voltage allowable range. ㆍUnder voltage protection : If voltage approved in control unit, less than rated voltage allowable range. ㆍ Icing protection : If sensor wire of cable is shorted during operating the motor. ㆍ Overspeed protection : If motor RPM exceeds 2800 r/min.
Motor Insulation Level	Class E (248℉)
Time Rating	Continuous
