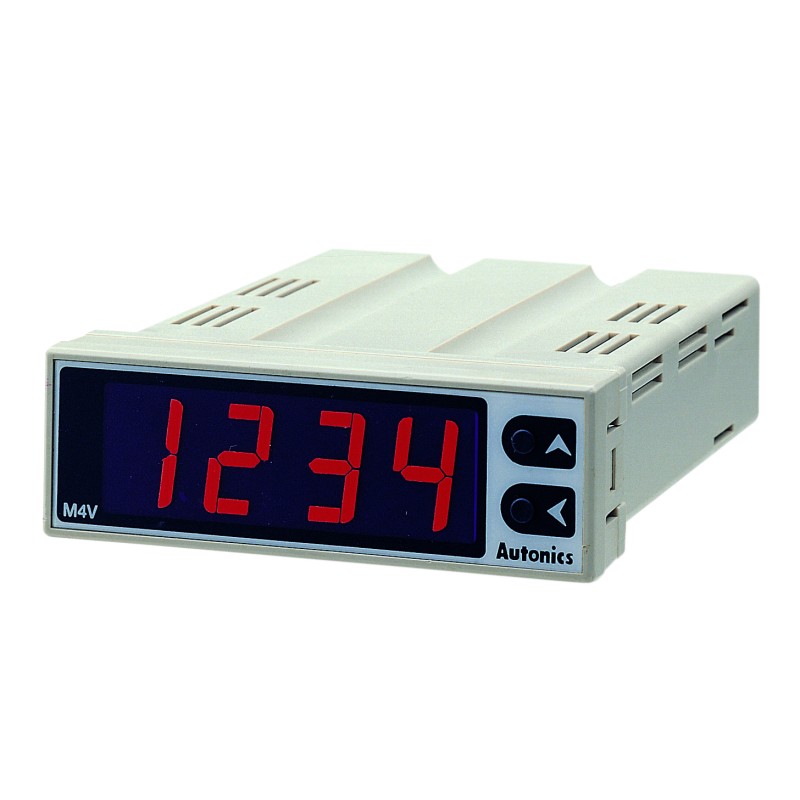

Meter, Graphic Panel, LED, W75xH25mm, 4-Digit, DC Volts & DC mA Input, Scaling, 12-24 VDC

Meter, Graphic Panel, LED, W75xH25mm, 4-Digit, DC Volts & DC mA Input, Scaling, 12-24 VDC

  • Brand: AUTONICS
  • Product Code: M4V
  • Availability: In Stock

  • $124.00


Qty

Graphic panel meter specialized for mosaic panel M4V series can implement various measuring input. The series increases customers’ convenience with error display function and self diagnosis function. In addition, M4V series realizes max display range from -999 to 9999 and high reliability measurement with built-in Microprocessor.

Main Features
  • Various input function
    : 0-2VDC, 0-10VDC, 1-5VDC, DC0-1mA, DC4-20mA
  • Prescale function(High / Low scale setting)
  • Max. display : -999 to 9999
  • Error display function and self diagnosis function
  • High quality by microprocessor built-in
  • Display accuracy :F.S. ±0.2% rdg ±1digit
    • Model M4V
    Measurement function DC volt DC ampere
    Measurement Input 0-2VDC 1-5VDC  0-10VDC DC0-1mA DC4-20mA
    Max. allowable input 110% of measurment input
    Power supply 12-24VDC
    Allowable voltage range 90 to 110% of rated voltage
    Power consumption Approx. 2W
    Display method 7 Segment red LED dlsplay(Segment height : 14mm)
    Display accuracy 0 to 50°C : F.S. ±0.2% rdg ±1digit
    -10 to 0°C : F.S. ±0.3% rdg ±1digit
    Sampling period 500ms
    Setting method Scale set by front swithces
    Set-dlagnosls Error indication
    Insulation resistance Min. 100MΩ(at 500VDC megger)
    Dielectric strength 2000VAC 50/60Hz for 1 minute
    Noise strength ±300V the square wave noise(pulse width : 1µs) by the noise simulator
    Vibration Mecanlcal 0.75mm amplitude at frequency of 10 to 50Hz(for 1 min.) in each of X, Y, Z directions for 1hour
    Malfunction 0.5mm amplitude at frequency of 10 to 50Hz(for 1 min.) in each of X, Y, Z directions for 10minutes
    Shock Mecanlcal 300m/s²(30G) in X, Y, Z direction for 3 times
    Malfunction 100m/s²(10G) in X, Y, Z directions for 3 times
    Environ-ment Ambient temperature -10 to 50°C, storage : 20 to 60°C
    Ambient humidity 35 to 85%RH, storage :35 to 85%RH
    Accessory Mosaic graphic panel mounting bracket
    Unit weight Approx. 83g
    Document download
    † Environment resistance is rated at no freezing or condensation.
