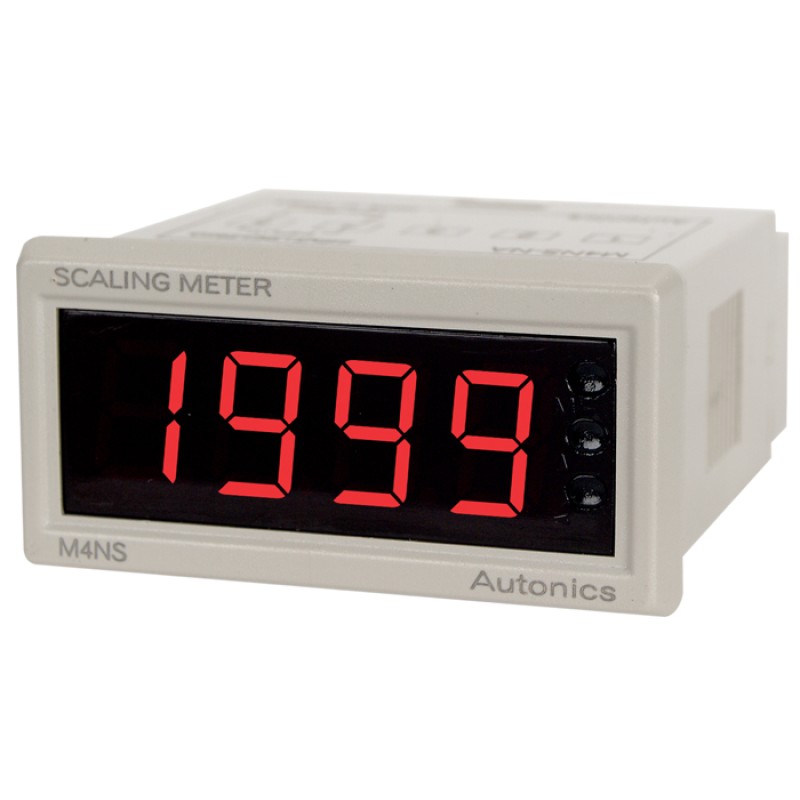

Meter, Digital Scaling, LED, W48xH24mm, 4 Digit, 4-20 mA input, Loop Powered
- Brand: AUTONICS
- Product Code: M4NS-NA
- Availability: In Stock
$89.00
Digital scaling meter M4NS/M4YS series adopts loop powered power supply type which providing power supply from measuring input so that it can run inner circuit without additional power source. Various functions including -1999 to 9999 max display range, free scaling function and monitoring display value and peak value make the series more user convenient ever.
Main Features
● Loop powered type : Power from measured input
● Measurement input : DC4-20mA
● Max. display range : -1999 to 9999
● Prescale function(High / Low scale setting)
● Decimal point change function
● Hi / Low limit input correction function
● Display peak value monitoring function
● Changeable delay time of monitoring peak value
● Display cycle change function (Selectable 0.5sec./1sec./2sec./3sec./4sec./5sec.)
● Error display function
| Model | M4NS-NA | M4YS-NA | |
| Power supply | Loop powered type | ||
| Display method | 7 Segment LED display | ||
| Character height | 10mm | 14mm | |
| Display accuracy †1 | F.S. 0.3% rdg ±1 digit | ||
| Display cycle | Selectable 0.5sec./1sec./2sec./3sec./4sec./5sec. | ||
| Resolution | 12,000 resolution | ||
| Max. display range | -1999 to 9999 | ||
| Setting type | Setting type with the front keys | ||
| Measuring input range †2 | DC4-20mA | ||
| Self-diagnosis function | Error display function(HHHH/LLLL) | ||
| Insulation resistance | Min. 100MΩ(at 500VDC megger) | ||
| Dielectric strength | 2000VAC 50/60Hz for 1 minute | ||
| Vibration | Mechanical | 0.75mm amplitude at frequency of -10 to 55Hz(for 1 min.) in each of X, Y, Z directions for 1hour | |
| Malfunction | amplitude at frequency of -10 to 55Hz(for 1 min.) in each of X, Y, Z directions for 10minute | ||
| Shock | Mechanical | 300m/s²(approx.30G) in each of X, Y, Z directions for 3 times | |
| Malfunction | 100m/s²(approx.10G) in each of X, Y, Z directions for 3 times | ||
| Environ-ment | Ambient temperature | -10 to 50°C, storage: -25 to 60°C | |
| Ambient humidity | 35 to 85%RH, storage: 35 to 85%RH | ||
| Unit weight | Approx. 44g | Approx. 110g | |
| Document download |  |
||
† 2: Impedance between input lines: Max. 600Ω(based on 24VDC)
Please be aware that activating input power is based on 24VDC, and the recommended impedence also will be lowered if the activating power is lower.
† Environment resistance is rated at no freezing or condesation.
