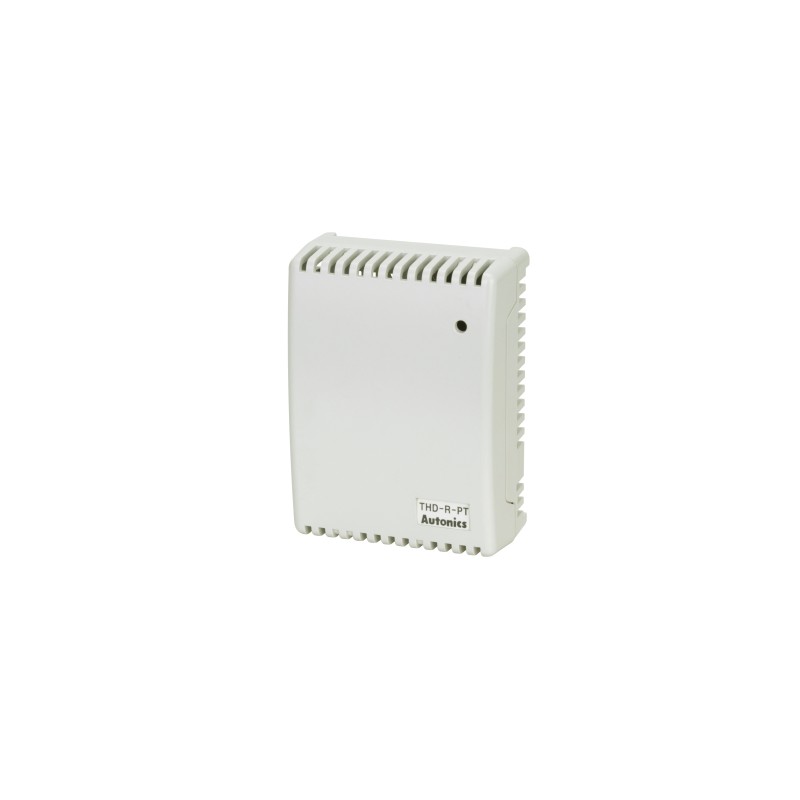

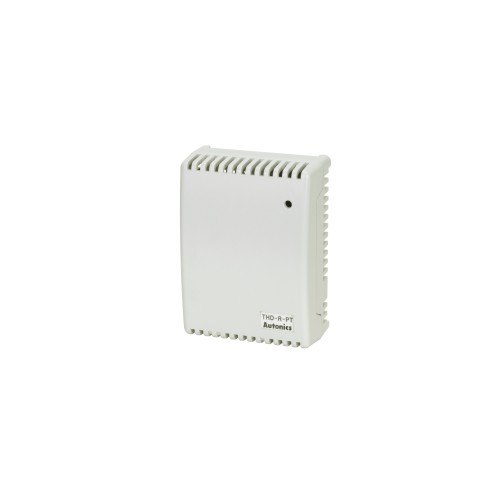

Temp/Humidity Transducer, Room type, 4-20 mA Output, 24 VDC power
- Brand: AUTONICS
- Product Code: THD-R-C
- Availability: In Stock
$250.00
| Model | THD-R-PT | THD-R-PT/C | THD-R-C THD-R-V THD-R-T |
THD-D[ ]-[ ] THD-W[ ]-[ ] |
THD-DD[ ]-[ ] THD-WD[ ]-[ ] |
|
| Display type | - | Non-indicating type | 7Segment LED display | |||
| Display digit | - | - | Each 3digits for temp./ humidity |
|||
| Character size | - | - | W6.2×H10.0mm | |||
| Power supply | - | 24VDC | ||||
| Allowable voltage range | 90 to 110% of rated voltage | |||||
| Power consumption | - | Max. 2.4W | ||||
| Measuring input | Temperature (Built-in sensor) |
Temperature, Humidity(Built-in sensor) | ||||
| Output¶ 1 | Temp. | DPt100Ω resistance value | DC4-20mA, 1-5VDC, RS485 communication output(Modbus RTU) |
|||
| Humidity | - | DC4-20mA | ||||
| Measurement range |
Temp. | -19.9 to 60.0°C | ||||
| Humidity | - | 0.0 to 99.9%RH(THD-R is required to attend for using over 90%RH.) | ||||
| Accuracy | Temp. | Max. ±0.8°C | -19.9 to 5.0°C : Max. ±1.0°C, 5.0 to 40.0°C : Max. ±0.5°C, 40.0 to 60.0°C : Max. ±1.0°C rdg ±1digit(At below -10ºC, within 1.5°C) |
|||
| Humidity | - | Max. ±3%RH at 30 to 70%RH (at 25 to 45°C) |
||||
| Sampling cycle | - | Fixed in 0.5 sec. | ||||
| Insulation resistance | - | Min. 100MΩ(at 500VDC megger) | ||||
| Dielectric strength | - | 500VAC 50/60Hz for 1 minute | ||||
| Noise strength | - | ±0.3kV the square wave noise(pulse width:1µs) by the noise simulator | ||||
| Vibration | Mechanical | - | 0.75mm amplitude at frequency of 10 to 55Hz(for 1 min.) in each of X, Y, Z directions for 1hour | |||
| Malfunction | - | 0.5mm amplitude at frequency of 10 to 55Hz(for 1 min.) in each of X, Y, Z directions for 10min. | ||||
| Shock | Mechanical | - | 300m/s²(approx. 30G) in each of X, Y, Z directions for3 times | |||
| Malfunction | - | 100m/s²(approx. 10G) in each of X, Y, Z directions for 3 times | ||||
| Protection | IP10 | IP65(Except sensing part) | ||||
| Ambient temperature | -20 to 60°C, storage : -20 to 60°C | |||||
| Cable | Terminal type | 4-wire, ø4, Length: 2m | ||||
| Approval | CE | |||||
| Unit weight | Approx. 55g | Approx. 160g | ||||
| Document download |  |
|||||
¶ Environment resistance is rated at no freezing or condensation.
