Autonics Timer, Backlit LCD, 1/16 DIN, 10 operation modes, 0.01sec-9999hr setting range, SPDT Timed, 24-240 VAC/VDC, 8pin (socket req'd) (Old# LE4S-24-240)

Autonics Timer, Backlit LCD, 1/16 DIN, 10 operation modes, 0.01sec-9999hr setting range, SPDT Timed, 24-240 VAC/VDC, 8pin (socket req'd) (Old# LE4S-24-240)

  • Brand: AUTONICS
  • Product Code: LE4S
  • Availability: In Stock

  • $118.00


Qty

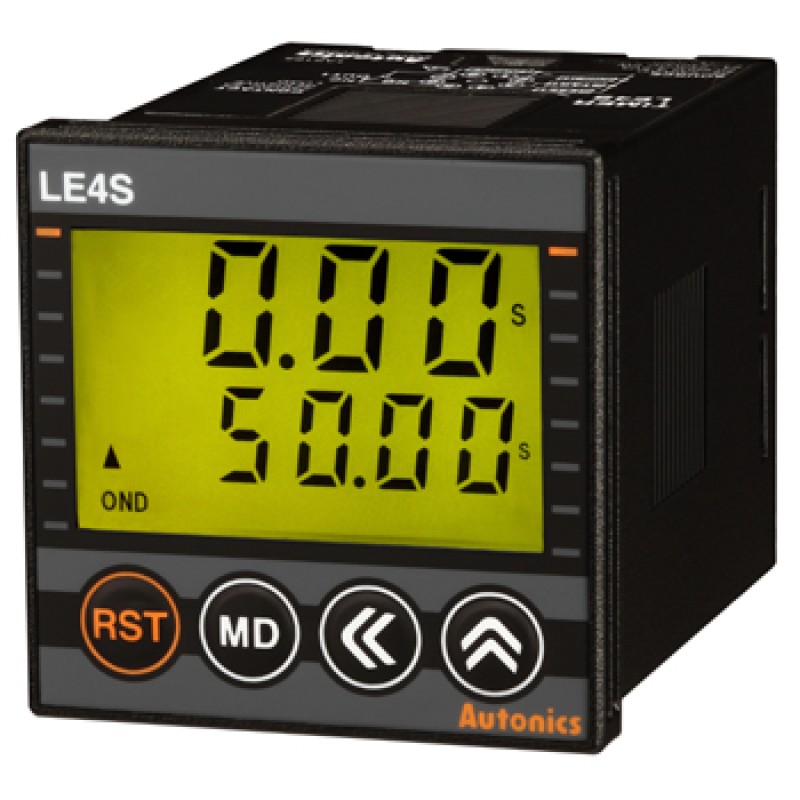

Upgraded back light type digital LCD timers LE4S/LE4SA are downsized by approx. 22% saves mounting space and adopted the new design nameplate. In addition, it is available to set each value and time range separately when choosing Flicker(FK, FK I) or ON-OFF Delay(ON OFF D, ON OFF D I) output mode. New LE4S/LE4SA's upgraded powerful functions of wide variety would fully satisfy customers’ needs.

Main features

Upgraded Features
  • Mounting space saving with compact design
    : downsized by approx. 22% in depth compared to existing models
    (length of panel on the back side is 56mm)
  • Available to set each value and time range separately when
    • choosing Flicker(FK, FK I) or ON-OFF Delay(ON OFF D,
    ON OFF D I) output mode
  • Adds Flicker 1 mode(LE4SA)
  • Settable One-shot output time(0.01 to 99.99sec.)
    • (existing model: fixed 0.5 sec.)
  • Configurable time range (added 9.999sec.): Settable by 0.001sec. unit
  • Selectable min. input time: 1ms or 20ms (LE4S)
  • Improved return time: 100ms
  • Backlight ON/OFF function

    • Original Features
  • Wide time range(0.01sec. to 9999hour)
  • Lock setting function for saving setting data
  • Soft touch setting
  • High visibility display with backlight
    • Model LE4S  LE4SA
    Function Multi time and operation
    Display method LCD dlsplay(Backlight)
    Power supply 24-240VAC 50/60HZ, 24-240VDC
    Allowable voltage range 90 to 110% of rated voltage
    Power consumption 24-240VAC: Max. 4.5VA, 24-240VDC: Max. 2W 24-240VAC: Max. 4VA, 24-240VDC: Max. 1,6W
    Return time Max. 100ms
    Min. input signal START 1ms, 20ms(Selectable) -
    INHIBIT
    RESET
    Input START • No-voltage input
    Impedance at short-circuit : Max. 1kΩ,
    Residual voltage : Max. 0.5V,
    Impedance at open-circuit : Min. 100kΩ    		 -
    INHIBIT
    RESET
    Timing operation Signal ON start Power ON start
    Control output Contact type Time limit SPDT(1c) Selectable Time limit DPDT(2c), Time limit SPDT(1c)+ Instantaneous SPDT(1c) (depends on operation mode)
    Contact capacity 250VAC 5A resistive load 250VAC 3A resistive load
    Relay life cycle Mechanical Min. 10,000,000 operations
    Electrical Min. 100,000 operations (at rated contact capacity)
    Output mode 10 operation modes 8 operation modes
    Environ -ment Ambient temperature -10 to 55°C, storage: -25 to 65°C
    Ambient humidity 35 to 85%RH
    Accessory Bracket
    Repeat error Max. ±0.01% ±0.05sec.(Power ON Start)
    Max. ±0.005% ±0.03sec.(Signal ON Start)    		 Max. ±0.01% ±0.05sec.
    Setting error
    Voltage error
    Temperature error
    Insulation resistance 100MΩ(at 500VDC megger)
    Dielectric strength 2000VAC 50/60Hz for 1 minute
    Noise strength ±2kV the square wave noise(pulse width : 1µs) by the noise simulator
    Vibration Mechanical 0.75mm amplitude at frequency of 10 to 55Hz(for 1 min.) in each of X, Y, Z directions for 1hour
    Malfunction 0.5mm amplitude at frequency of 10 to 55Hz(for 1 min.) in each of X, Y, Z directions for 10 minutes
    Shock Mechanical 300m/s²(approx. 30G) in each of X, Y, Z directions for 3 times
    Malfunction 100m/s²(approx. 10G) in each of X, Y, Z directions for 3 times
    Approval CE,UL
    Unit weight Approx. 98g
    Document download
    † Environment resistance is rated at no freezing or condensation.
