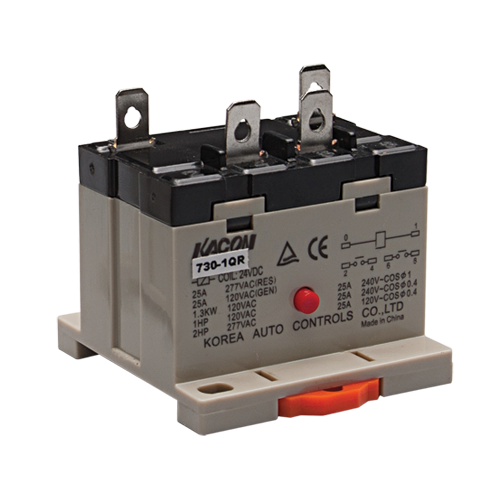

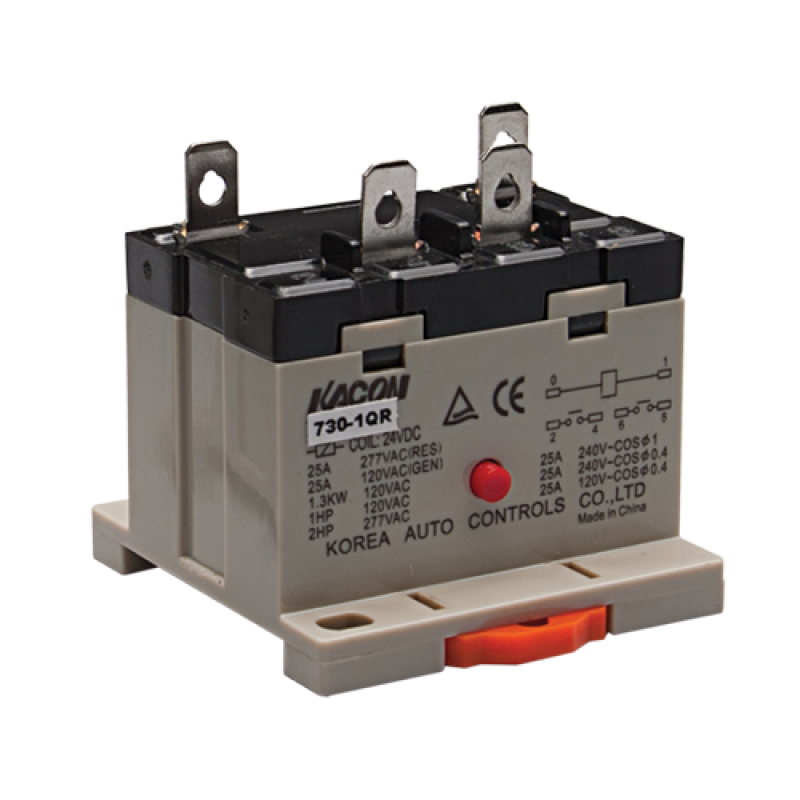

Electro Mechanical Power Relay, DIN raill mount & quick connector(#250), 30A SPST NO, 220VAC coil input
- Brand: KACON
- Product Code: 730-1QR-220VAC
- Availability: In Stock
$13.88
| Contact specifications | ||
| Configuration | 1 | 2 |
| SPST (1NO) | DPST (2NO) | |
| Material | Silver alloy | |
| Max. Switching current | 30A | 25A |
| Rated max. resistive load | 30A at 30VDC/277VAC | 25A at 30VDC/277VAC |
| Min. switching requirement* | 100mA 5VDC | |
| * Min. Switching requirement: If load require low current, you may consider a troubleshooting for operation. For a proper operation, a dummy resistance should be added in parallel on the load to provide current more than min. Switching requirement (100mA 5VDC) | ||
| Coil specifications | ||
| Voltage range | 6VDC to 110VDC, 6VAC to 240VAC | |
| Power consumption | DC: 1.9W approx. | 6-48VAC: 1.7-1.9VA |
| 100/120VAC: 1.9-2.7VA | 200/240VAC: 1.8-2.6VA | |
| Minimum operating voltage | 80% of rated coil voltage | |
| Dropout voltage | DC Coil: 10% of rated voltage | |
| AC Coil: 30% of rated voltage | ||
| General information | ||
| Operating Time | 30ms | |
| Dropout time | 30ms | |
| Isulation resistance | 100mΩ min. (500VDC) | |
| Dielectric strength | Between contacts: 2,000Vrms 1 min. | |
| Between contact & coil: 4,000Vrms 1 min. | ||
| Mechanical life | 1,000,000 operations | |
| Electrical life | 100,000 operations | |
| Vibration resistanceFunctional | 10~55Hz at double amplitude of 1.5mm | |
| Ambient temperature | -10°C ~ +60°C (-14°F ~ +140°F) at non freezing | |
| Ambient humidity | 35~85% RH | |
| Weight | TB type: 90g(3.2oz), QB type: 120g(4.2oz) | |
| Approval |  |
|
| Document download |  |
|
