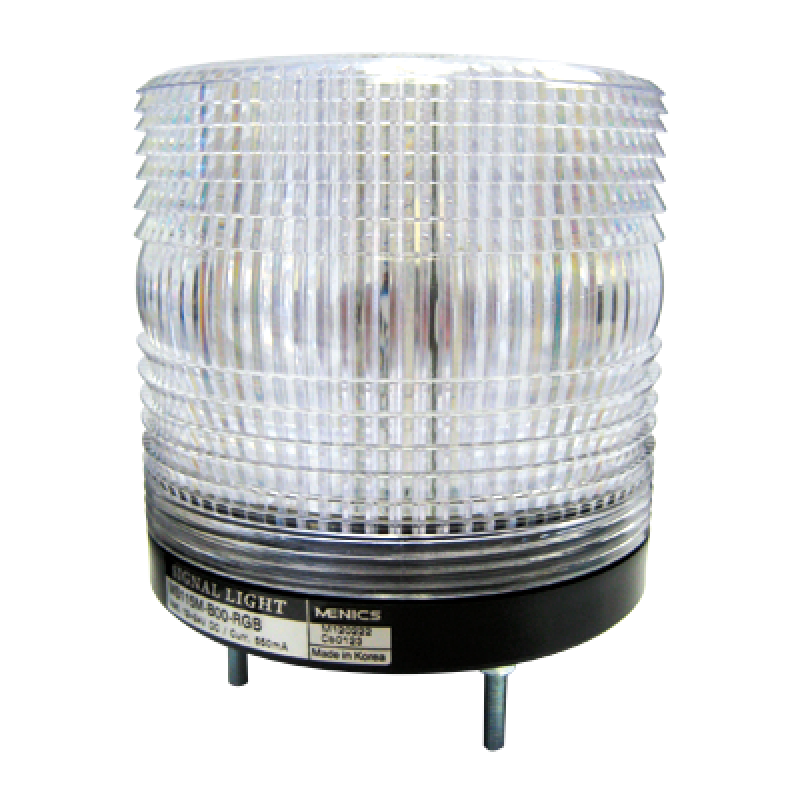

Beacon signal light, 115mm lens, 3 colors(R/B/G) in one, LED, 100dB alarm/steady/flashing, Stud Mount, 12-24V AC/DC
- Brand: MENICS
- Product Code: MS115M-B00-RBG
- Availability: In Stock
$233.20
| Model | MS115M | ||
| Style | LED Steady, Flashing + Buzzer | ||
| Size | Ø115mm diameter | ||
| Power Supply | 12~24VAC/DC | 90 ~ 240VAC | |
| Current Consumption |
RYG/RGB | 425~605mA±10% | 60~130mA±10% |
| Buzzer | 150mA | ||
| Certificate/Compliance | RoHS, UL | ||
| Flash rate | Approx. 80±5 flashes/min. | ||
| Continuous Flash | Approx. 80±5 flashes/min. | ||
| Buzzer sound level | 10~100±5dB at 1m: volume adjustable | ||
| Vibration | Operating extremes: 10~55Hz, amplitude 0.75mm² | ||
| Ambient Temperature | -20 ~ 40°C | ||
| Storage Temperature | -20 ~ 70°C | ||
| Ambient humidity | 45 ~ 85% RH | ||
| Degree of Protection | IP65 | ||
| Recommended wire size | UL1007/22AWG | ||
| Weight | 400g | ||
| Document download |  |
||
