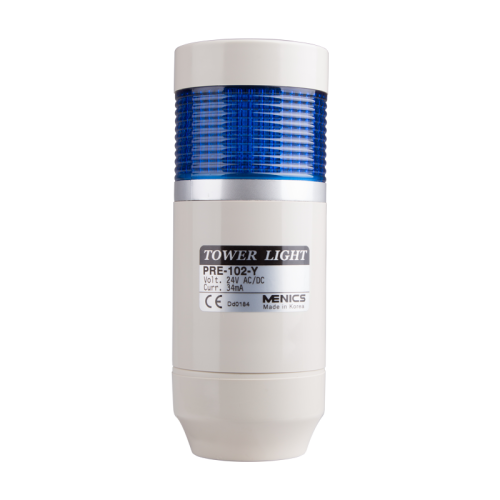

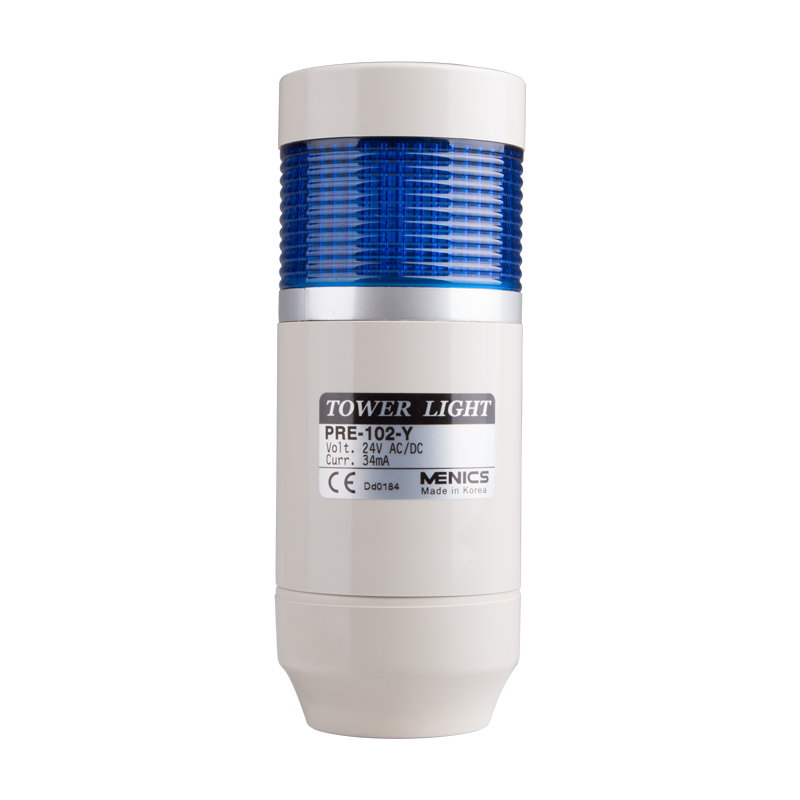

LED stack tower light, 56mm blue color 1 stack modular, Steady/flash, Pole mounting beige body, 25" prewired, 12V AC/DC
- Brand: MENICS
- Product Code: PREF-101-B
- Availability: 2-3 Days
$87.95
| Size | 56mm diameter | |||
| Maximum tier | 5 stacks (max. tier should includes buzzer) | |||
| Power Supply | 12VAC/DC | 24VAC/DC | 110/220VAC | |
| Current Consumption |
R | 54mA | 28mA | 25mA |
| Y | 109mA | 62mA | 57mA | |
| G | 169mA | 102mA | 91mA | |
| B | 223mA | 136mA | 124mA | |
| C | 275mA | 169mA | 155mA | |
| Buzzer | 30mA | |||
| Certificate/Compliance | RoHS, CE | |||
| Flash rate | Approx. 80 +/- 5 flashes/min. | |||
| Buzzer sound level | 80 +/- 5dB at 1m | |||
| Vibration | Operating extremes: 10~55Hz, amplitude 0.75mm | |||
| Ambient Temperature | -15 ~ 40 celsius | |||
| Storage Temperature | -20 ~ 70 celsius | |||
| Lens Material | PC Plastic | |||
| Ambient humidity | 45 ~ 85% RH | |||
| Degree of Protection | IP56 (IP40 with buzzer) | |||
| Recommended wire size | UL1007/22AWG | |||
| Document downloads |  |
|||
