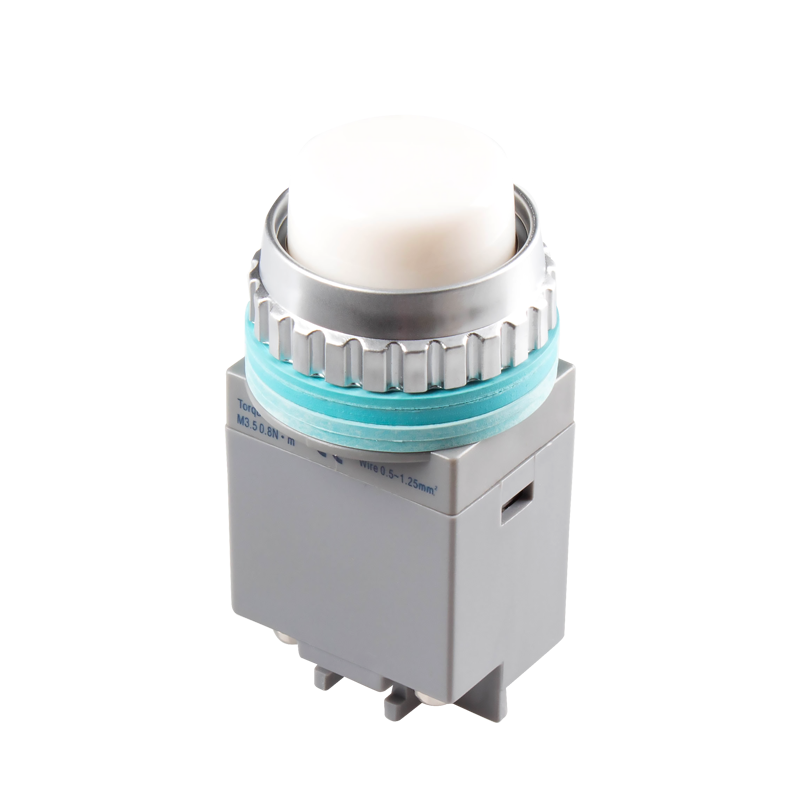

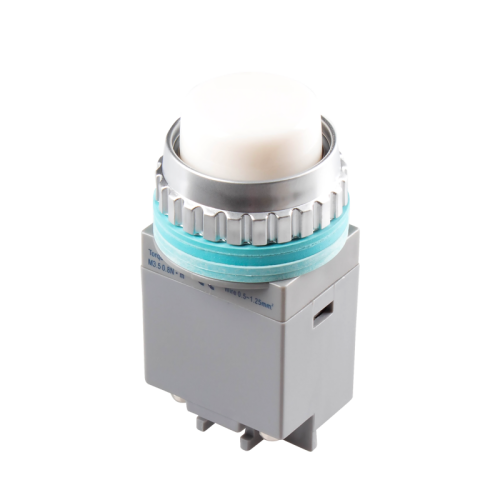

LED Pilot Lamp, 30mm Panel hole, IP65, Dome head, White, 110VAC
- Brand: KACON
- Product Code: B30-17W-110VAC
- Availability: In Stock
$11.76
| GENERAL INFORMATION | |||||
| Norminal rating | 10A 250VAC | ||||
| Contact resistance | Max. 50mΩ | ||||
| Dielectric strength |
btwn charger & earth | 2,500VAC for 1 minute | |||
| btwn charging sectors | 1,800VAC for 1 minute | ||||
| Frequency of alteration | 30 operation/min | ||||
| Ambient temperature | Operation: -25°C~ +70°C, Storage: -30°C~+80°C | ||||
| Ambient humidity | 35~85%RH | ||||
| Degree of protection | IP63 (optional IP65) | ||||
| Insulation Resistance | 100MΩ at 500V DC | ||||
| LED | |||||
| Rated voltage | 24VAC | ||||
| Rated Current | Approx. 15mA | ||||
| Expected life | 50,000hrs | ||||
| Certification / Compliance | UL, CE | ||||
| Document downloads |  |
||||
