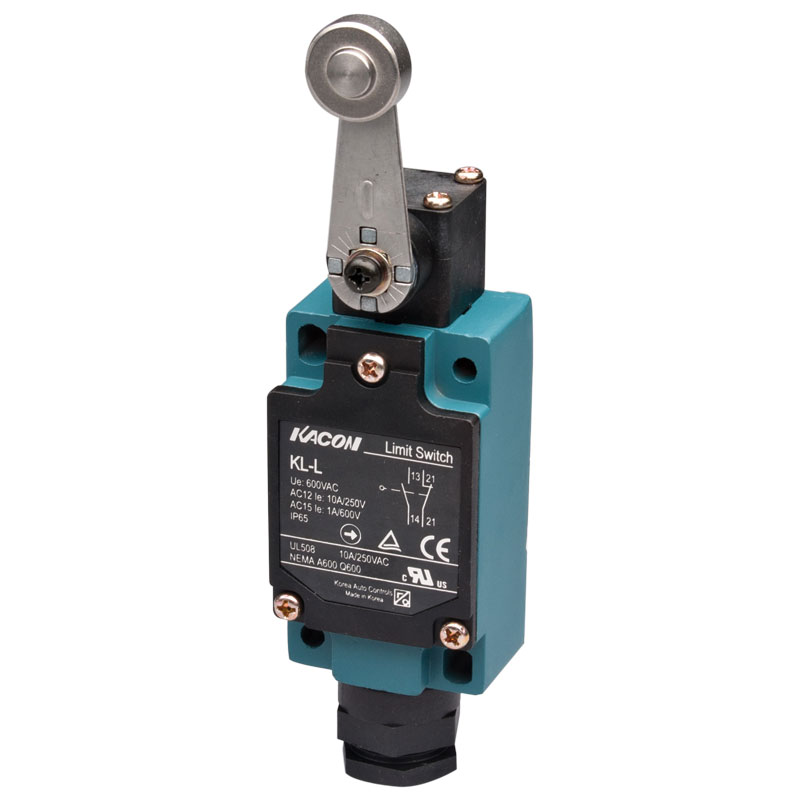

Limit Switch, 72x40x36mm aluminum die-cast body, 1 NO & 1 NC w/ snap action, IP65,, Roller lever actuator
- Brand: KACON
- Product Code: KLLAL2
- Availability: In Stock
$33.32
| Contact arrangement | Ag Alloy, SPDT(1NO+1NC) | |
| Termial Tightened Torque | 0.8N • m (8.16kgf • cm) | |
| Insulation resistance | 100MΩ at 500V DC | |
| Contact resistance | 50mΩ | |
| Vibration | 10~55Hz (durable amplitude 1.5mm) | |
| Impact resistance | Durability | Max 100G |
| Error | Plunger max. 30G | |
| Lever max. 20G | ||
| Ambient temperature | Operation: -25°C~ +80°C, Storage: -30°C~+80°C | |
| Ambient humidity | 35~85%RH (at -5~+40°C) | |
| Operation speed | 0.1mm/sec~0.5m/sec | |
| Operation frequency | Electrical | Max. 30/min |
| Mechanical | Max. 120/min | |
| Dielectrical strength | 2,000VAC 1min | |
| Expected life | Electrical | Min. 500,000 |
| Mechanical | Min. 10,000,000 | |
| Document downloads |  |
|
Contact Rating
| Rated voltage | Non-Inductive load | Inductive load | ||||||
| Resistive load | Lamp load | Inductive load | Motor load | |||||
| NO | NC | NO | NC | NO | NC | NO | NC | |
| 125VAC | 10A | 10A | 1.5A | 3A | 6A | 6A | 2.5A | 5A |
| 250VAC | 10A | 10A | 1A | 2A | 4A | 4A | 1.5A | 3A |
| 600VAC | 1A | 3A | 0.5A | 1A | 1.5A | 1.5A | 0.5A | 1A |
| 8VDC | 10A | 10A | 3A | 6A | 10A | 10A | 6A | 6A |
| 30VDC | 6A | 6A | 3A | 4A | 6A | 6A | 4A | 4A |
| 125VDC | 0.8A | 0.8A | 0.2A | 0.2A | 0.8A | 0.8A | 0.2A | 0.2A |
