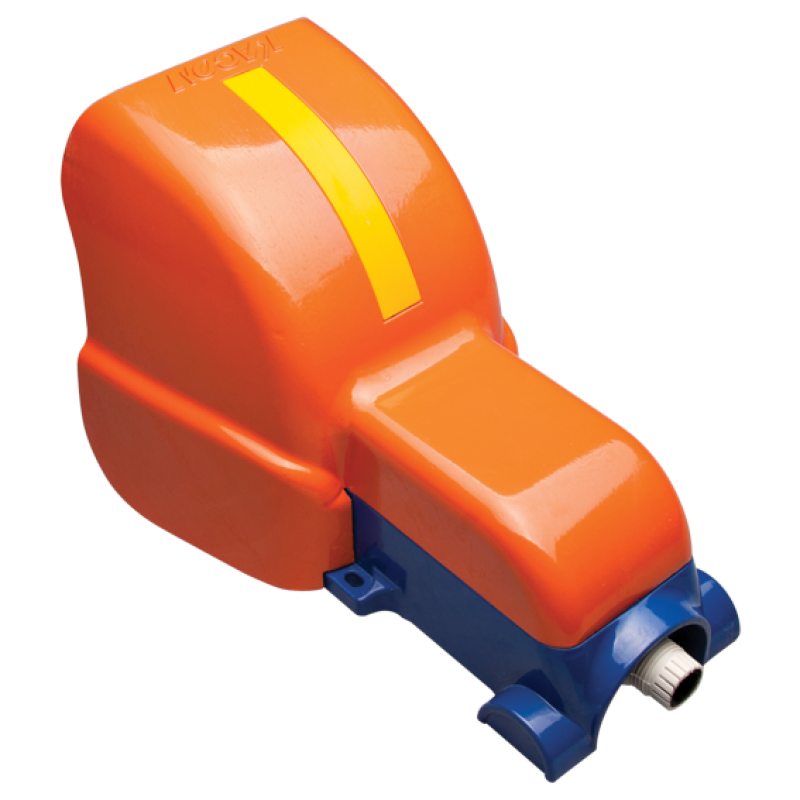

Foot switch, 2 stage, Momentary w/ Safety lever, Aluminum die-cast full foot guard of 200J impact, IP67, 1 NO & 1 NC, 20A 250VAC
- Brand: KACON
- Product Code: HRF-HD8L211
- Availability: 2-3 Days
$286.68
| Contact Ratings | Material | Ag Alloy (24K Au plated) | |
| Rated Current | 20A 250VAC | ||
| Rated Votage | Max. 440VAC | ||
| Contact Resistance | Max. 50mΩ | ||
| General Rating | Dielectric Strength | 2,000VAC 1 minute | |
| Life Cycle | Electrical | 200,000 | |
| Mechanical | 1,000,000 | ||
| Degree of Protection | IP67 | ||
| Isulation Resistance | 100MΩ | ||
| Certification | UL, CE | ||
| Document download |  | ||
