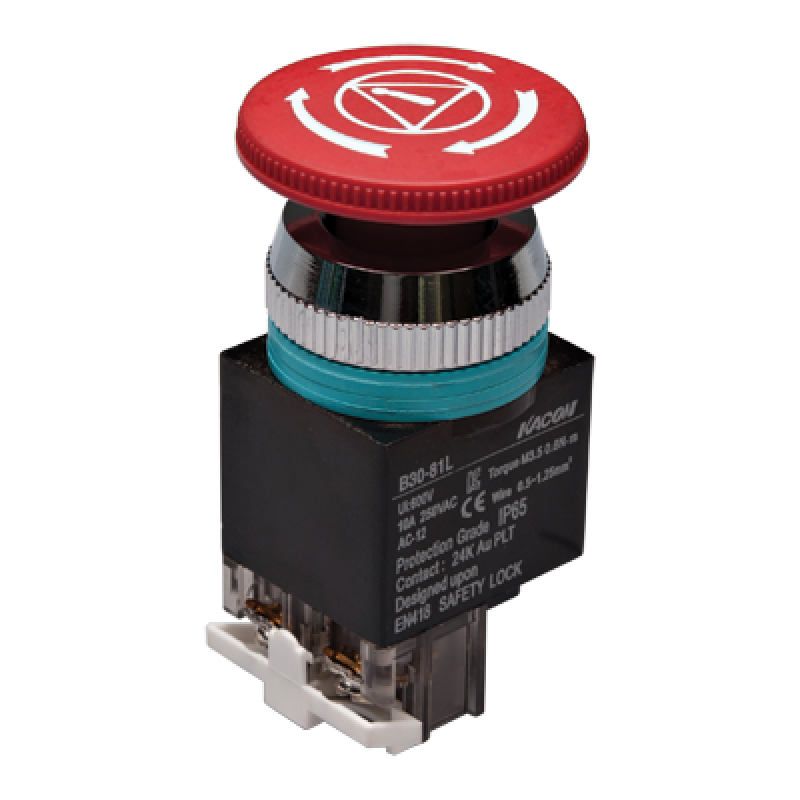

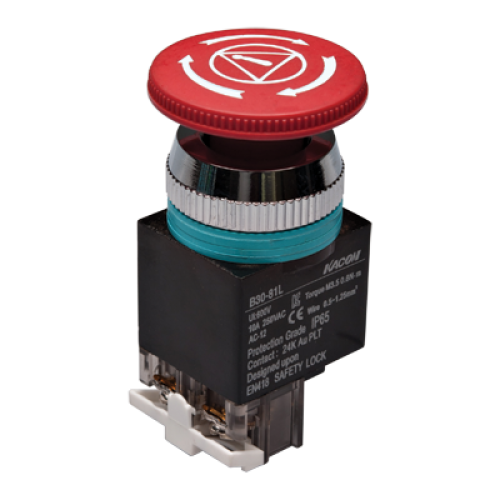

30mm E-Stop Switch, IP65, Latch, Red 40mm Round Head, 1NO 1NC. EN418 Safety Lock

GENERAL INFORMATION
Norminal rating		10A 250VAC
Contact resistance		Max. 50mΩ
Dielectric strength	btwn charger & earth	2,500VAC for 1 minute
	btwn charging sectors	1,800VAC for 1 minute
Frequency of alteration		30 operation/min
Shock resistance		Operation error: 100m/s², Durability 500m/s²
Expected life	Mechanical	500,000 times
	Electrical	100,000 times
Ambient temperature		Operation: -25°C~ +70°C, Storage: -30°C~+80°C
Ambient humidity		35~85%RH
Degree of protection		IP63 (optional IP65)
Insulation Resistance		100MΩ at 500V DC
Certification / Compliance		CE
Document downloads

Norminal current
Material		Ag alloy
Rated current		Voltage	AC1	AC3	DC1
		24V	20A	10A	6A
		110V	16A	8A	1.2A
		250V	10A	5A	0.5A
		440V	5A	2.5A	0.25A

LED
Rated voltage		24VAC
Rated Current		Approx. 15mA
Expected life		50,000hrs

$66.60
