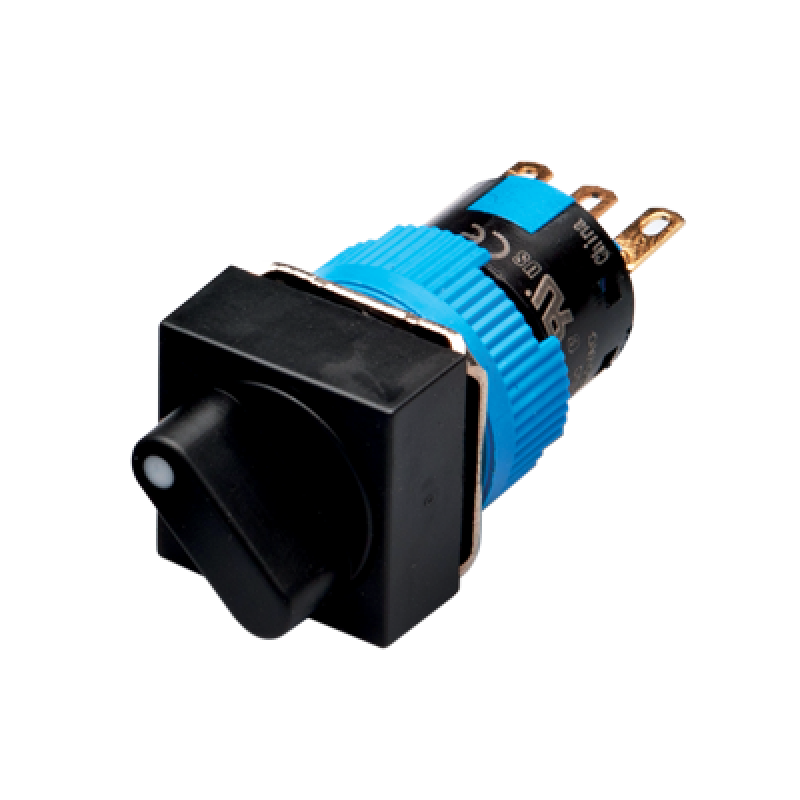

3 Position Maintained Selector Switch, 16mm Panel hole, IP65, Square Head, DPDT
- Brand: KACON
- Product Code: K16-522
- Availability: In Stock
$19.89
| GENERAL INFORMATION | ||
| Contact resistance | Max. 50mΩ | |
| Insulation resistance | 100mΩ at 500VDC | |
| Dielectric strength | 2,000VAC for 1 minute | |
| Vibration resistance | 5~55Hz Dual amplitude : 0.75mm | |
| Shock resistance | Endurance: 500m/s², Operatin 200m/s² | |
| Expected life | Mechanical | Push Button (release): Min. 1,000,000 |
| Selector, Key Selector: 250,000 | ||
| OThers: Min. 100,000 | ||
| Electrical | Maintained: Min. 50,000 (frequency 1,200 times/hrs) | |
| Others: Min. 100,000 | ||
| Ambient temperature | Operation: -25°C~ +55°C, Storage: -30°C~+80°C | |
| Ambient humidity | 45~85% RH | |
| Certification / Compliance | UL, CE | |
| Degree of protection | IP65 | |
| Document downloads |  |
|
| Terminal soldering | 20W 5sec / 260°C 3sec | |
| CONTACT | ||
| Contact Form | SPDT (1NO + 1NC), DPDT (2NO + 2NC) | |
| Material | Ag Alloy (24K Gold plated) | |
| Max. Switching Current | 3A Max. | |
| Max. Rated Voltage | 250VAC, 110VDC | |
| Rated load | 1A at 24VDC/120VAC, 0.5A at 250VAC | |
| Min. Switching Current | 1mA 5VDC | |
| LED | ||
| Rated Current | 15mA | |
| Expercted Life | 50,000hrs | |
| Rated Voltage | 24VDC, 12VDC, 6VDC, 110VAC | |
| BUZZER | ||
| Sound | 80dB continous alert sound at 0.1m | |
| Voltage/Current | 24VDC/15mA Approx. | |
