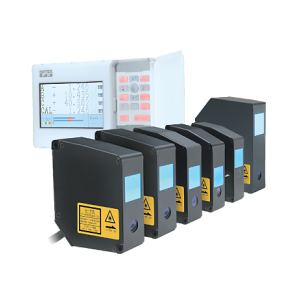

CD5 Series (OPTEX FA)

CD5 Series (OPTEX FA)


Product Compare (0)
CD5 amplifier, 4.3" display with 10-key pad, 3 sensors connectable, NPN, +/-10V & 4~20mA, RS-232C/USB, 12 - 24VDC

CD5A-N

CD5 amplifier, 4.3" display with 10-key pad, 3 sensors connectable, NPN, +/-10V & 4~20mA, RS-232C/USB, 12 - 24VDC

$2,079.00 Ex Tax: $2,079.00
CD5 amplifier, 4.3" display with 10-key pad, 3 sensors connectable, PNP, +/-10V & 4~20mA, RS-232C/USB, 12 - 24VDC

CD5A-P

CD5 amplifier, 4.3" display with 10-key pad, 3 sensors connectable, PNP, +/-10V & 4~20mA, RS-232C/USB, 12 - 24VDC

$2,079.00 Ex Tax: $2,079.00
Displacement sensor, +/-0.05% F.S. linearity, 1µm repeat accuracy, 85+/-20mm measurement range, RS422, Class 2 laser, 12 - 24VDC, M12 pigtail cable (Amp part# : CD5-A)

CD5-85

Displacement sensor, +/-0.05% F.S. linearity, 1µm repeat accuracy, 85+/-20mm measurement range, RS422, Class 2 laser, 12 - 24VDC, M12 pigtail cable (Amp part# : CD5-A)

$3,630.00 Ex Tax: $3,630.00
Displacement sensor, +/-0.05% F.S. linearity, 2µm repeat accuracy, 150+/-40mm measurement range, RS422, Class 2 laser, 12 - 24VDC, M12 pigtail cable (Amp part# : CD5-A)

CD5-150

Displacement sensor, +/-0.05% F.S. linearity, 2µm repeat accuracy, 150+/-40mm measurement range, RS422, Class 2 laser, 12 - 24VDC, M12 pigtail cable (Amp part# : CD5-A)

$3,630.00 Ex Tax: $3,630.00
Displacement sensor, +/-0.08% F.S. linearity, 0.46µm repeat accuracy, 30+/-5mm measurement range, RS422, Class 2 laser, 12 - 24VDC, M12 pigtail cable (Amp part# : CD5-A)

CD5-30A

Displacement sensor, +/-0.08% F.S. linearity, 0.46µm repeat accuracy, 30+/-5mm measurement range, RS422, Class 2 laser, 12 - 24VDC, M12 pigtail cable (Amp part# : CD5-A)

$3,630.00 Ex Tax: $3,630.00
Displacement sensor, Specular reflection, +/-0.08% F.S. linearity, 0.37µm repeat accuracy, 25+/-2mm measurement range, RS422, Class 1 laser, 12 - 24VDC, M12 pigtail cable (Amp part# : CD5-A)

CD5-L25A

Displacement sensor, Specular reflection, +/-0.08% F.S. linearity, 0.37µm repeat accuracy, 25+/-2mm measurement range, RS422, Class 1 laser, 12 - 24VDC, M12 pigtail cable (Amp part# : CD5-A)

$3,630.00 Ex Tax: $3,630.00
Displacement sensor, Specular wide spot, +/-0.08% F.S. linearity, 0.23µm repeat accuracy, 26.1+/-2.5mm measurement range, RS422, Class 2 laser, 12 - 24VDC, M12 pigtail cable (Amp part# : CD5-A)

CD5-W30A

Displacement sensor, Specular wide spot, +/-0.08% F.S. linearity, 0.23µm repeat accuracy, 26.1+/-2.5mm measurement range, RS422, Class 2 laser, 12 - 24VDC, M12 pigtail cable (Amp part# : CD5-A)

$3,630.00 Ex Tax: $3,630.00
Displacement sensor, Specular wide spot, +/-0.08% F.S. linearity, 0.37µm repeat accuracy, 25+/-2mm measurement range, RS422, Class 1 laser, 12 - 24VDC, M12 pigtail cable (Amp part# : CD5-A)

CD5-LW25A

Displacement sensor, Specular wide spot, +/-0.08% F.S. linearity, 0.37µm repeat accuracy, 25+/-2mm measurement range, RS422, Class 1 laser, 12 - 24VDC, M12 pigtail cable (Amp part# : CD5-A)

$3,630.00 Ex Tax: $3,630.00
Displacement sensor, Wide spot, +/-0.05% F.S. linearity, 2µm repeat accuracy, 150+/-40mm measurement range, RS422, Class 2 laser, 12 - 24VDC, M12 pigtail cable (Amp part# : CD5-A)

CD5-W150

Displacement sensor, Wide spot, +/-0.05% F.S. linearity, 2µm repeat accuracy, 150+/-40mm measurement range, RS422, Class 2 laser, 12 - 24VDC, M12 pigtail cable (Amp part# : CD5-A)

$3,630.00 Ex Tax: $3,630.00
Displacement sensor, Wide spot, +/-0.08% F.S. linearity, 0.5µm repeat accuracy, 85+/-20mm measurement range, RS422, Class 2 laser, 12 - 24VDC, M12 pigtail cable (Amp part# : CD5-A)

CD5-W85

Displacement sensor, Wide spot, +/-0.08% F.S. linearity, 0.5µm repeat accuracy, 85+/-20mm measurement range, RS422, Class 2 laser, 12 - 24VDC, M12 pigtail cable (Amp part# : CD5-A)

$3,630.00 Ex Tax: $3,630.00
