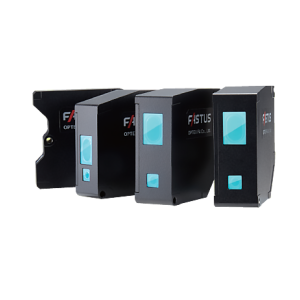

CDX Series (OPTEX FA)
CDX-150A
Displacement sensor, +/-0.015% F.S. linearity, 0.25µm repeat accuracy, 150+/-40mm measurement range, Ethernet 100BASE-TX, Class 1 laser, 12 - 24VDC, M12 pigtail cable
CDX-30A
Displacement sensor, +/-0.015% F.S. linearity, 0.25µm repeat accuracy, 30+/-5mm measurement range, Ethernet 100BASE-TX, Class 1 laser, 12 - 24VDC, M12 pigtail cable
CDX-85A
Displacement sensor, +/-0.015% F.S. linearity, 0.25µm repeat accuracy, 85+/-20mm measurement range, Ethernet 100BASE-TX, Class 1 laser, 12 - 24VDC, M12 pigtail cable
CDX-L15A
Displacement sensor, Sepcular reflecion, +/-0.05% F.S. linearity, 0.25µm repeat accuracy, 15+/-1mm measurement range, Ethernet 100BASE-TX, Class 1 laser, 12 - 24VDC, M12 pigtail cable
CDX-LW15A
Displacement sensor, Sepcular reflecion, +/-0.05% F.S. linearity, 0.25µm repeat accuracy, 15+/-1mm measurement range, Ethernet 100BASE-TX, Class 1 laser, 12 - 24VDC, M12 pigtail cable
CDX-W150A
Displacement sensor, Wide spot, +/-0.015% F.S. linearity, 0.25µm repeat accuracy, 150+/-40mm measurement range, Ethernet 100BASE-TX, Class 1 laser, 12 - 24VDC, M12 pigtail cable
CDX-W30A
Displacement sensor, Wide spot, +/-0.015% F.S. linearity, 0.25µm repeat accuracy, 30+/-5mm measurement range, Ethernet 100BASE-TX, Class 1 laser, 12 - 24VDC, M12 pigtail cable
CDX-W85A
Displacement sensor, Wide spot, +/-0.015% F.S. linearity, 0.25µm repeat accuracy, 85+/-20mm measurement range, Ethernet 100BASE-TX, Class 1 laser, 12 - 24VDC, M12 pigtail cable
